The 2008–2015 Land Cruiser VDJ200 pairs Toyota’s body-on-frame toughness with the 1VD-FTV 4.5-litre twin-turbo diesel V8. In European specification it delivers strong mid-range torque, a refined six-speed automatic, and a full-time 4×4 system with a lockable centre differential and low range. Cabin comfort moved upmarket in this generation—electric seats, high-grade leather, and premium audio were common—while suspension hardware (double wishbone front, multi-link rear) was tuned to keep a heavy seven-seater controlled on poor surfaces. Owners prize these trucks for their towing stability (up to 3,500 kg braked), long-distance comfort, and longevity when serviced on time. Compared with the smaller 150-series Land Cruiser, the VDJ200 is heavier and thirstier, but it tows better, rides more smoothly, and feels unstressed at motorway speeds. If you need a diesel V8 4×4 that does real work and ages well, this is the model years to shortlist.
Fast Facts
- Twin-turbo 4.5-litre V8 diesel with broad torque; stable 3,500 kg (7,716 lb) braked towing.
- Robust ladder frame, full-time 4×4 with low range and centre diff lock; rear diff lock widely fitted.
- Long-distance comfort: quiet cabin, smooth six-speed automatic, confident high-speed stability.
- Watch for age-related diesel items (injector seals, EGR/DPF cleanliness) and suspension wear on heavy use.
- Typical engine oil service interval: 10,000–15,000 km (6,000–10,000 mi) or 12 months, whichever comes first.
Explore the sections
- VDJ200 Land Cruiser overview
- Land Cruiser VDJ200 specs
- Trims, options and safety
- Reliability and known issues
- Maintenance and buyer’s guide
- Driving and performance
- VDJ200 versus rivals
VDJ200 Land Cruiser overview
The VDJ200 launched in Europe with the 1VD-FTV 4.5-litre twin-turbo diesel V8 rated at 286 hp (210 kW) and a deep 650 Nm (479 lb-ft) torque plateau—exactly the sort of output that makes a two-and-a-half-tonne seven-seater feel relaxed. It’s a full-time 4×4 on a separate ladder frame, using a two-speed transfer case and a lockable Torsen centre differential. Most European market vehicles were delivered with a rear differential lock, underbody protection, and a tow rating up to 3,500 kg (braked).
A six-speed automatic with wide ratios helps both off-the-line pull and relaxed cruising. Suspension is double-wishbone up front and a four-link live axle at the rear. Many EU-spec examples include Adaptive Variable Suspension (AVS) and Active Height Control (AHC) for level stance and better ride compliance under load. Braking hardware is appropriately large—vented discs all round with multi-piston front calipers—and the steering is hydraulic for consistent feel on rough ground.

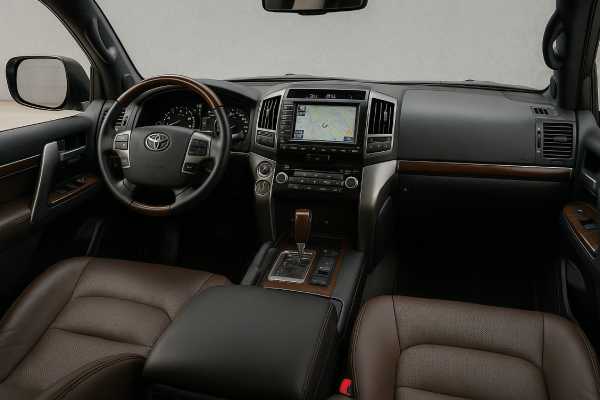

Inside, the VDJ200 makes long trips easy: supportive seats, good outward visibility, and sound insulation that softens the diesel’s thrum. Seven seats were common; the third row folds to the sides to preserve a flat load floor. Equipment moved the model upmarket—heated seats, premium navigation/audio, and 18- to 20-inch wheel packages were typical in higher-grade trims.
Notably for this 2008–2015 window, advanced active safety like autonomous emergency braking and adaptive cruise were not widespread; stability and traction control were standard, augmented by off-road aids (Downhill Assist Control, hill-start assist). As an ownership proposition, the 1VD-FTV is durable when serviced on time with low-ash oil and quality fuel. Age and high mileage bring predictable wear items (suspension bushings, wheel bearings, injector seals), but the basic structure and drivetrain are among the most durable in the segment.
Land Cruiser VDJ200 specs
Below are European-market specifications for the diesel V8 Land Cruiser (2008–2015). Figures can vary slightly by year and equipment; use VIN-specific documentation to confirm exact fitment.
Engine and Performance (ICE)
| Item | Detail |
|---|---|
| Code | 1VD-FTV (twin-turbo) |
| Layout & cylinders | 90° V8, DOHC, 32 valves (4 per cyl) |
| Bore × stroke | 86.0 × 96.0 mm (3.39 × 3.78 in) |
| Displacement | 4.461 L (4,461 cc) |
| Induction | Sequential twin turbochargers, intercooler |
| Fuel system | Common-rail direct injection |
| Compression ratio | ~16.8:1 (market/calibration dependent) |
| Max power | 286 hp (210 kW) @ 3,600 rpm |
| Max torque | 650 Nm (479 lb-ft) @ 1,600–2,800 rpm |
| Timing drive | Chain |
| Emissions standard | Euro 4 / early Euro 5 (by market/year) |
| Rated economy (combined) | ~10.2 L/100 km (27.7 mpg UK / 23.1 mpg US) |
| Real-world highway (120 km/h / 75 mph) | 10.5–12.0 L/100 km (22.5–19.6 mpg US) typical |
| Aerodynamics | Cd ~0.35 (typical for class); broad frontal area |
Transmission and Driveline
| Item | Detail |
|---|---|
| Transmission | 6-speed automatic |
| Gear ratios | 1st 3.333; 2nd 1.960; 3rd 1.353; 4th 1.000; 5th 0.728; 6th 0.588; Rev 3.061 |
| Final drive ratio | 3.909 |
| Drive type | Full-time 4×4 with Torsen centre diff, low range |
| Differentials | Centre diff lock; rear diff lock widely fitted |
Chassis and Dimensions
| Item | Detail |
|---|---|
| Suspension (front) | Double wishbone with coil springs; AVS/AHC available |
| Suspension (rear) | Four-link live axle with coil springs; AVS/AHC available |
| Steering | Hydraulic power; ratio 16.6:1 |
| Brakes (front/rear) | Ventilated discs 340 mm / 345 mm (13.4 / 13.6 in) |
| Wheels/Tyres | 285/60 R18 or 285/50 R20 (market dependent) |
| Ground clearance | 225 mm (8.9 in) |
| Angles | Approach 30° / Departure 20° / Ramp-over 25° |
| Length / Width / Height | 4,950 / 1,970 / 1,865 mm (194.9 / 77.6 / 73.4 in) |
| Wheelbase | 2,850 mm (112.2 in) |
| Turning circle (kerb-to-kerb) | 11.8 m (38.7 ft) |
| Kerb (curb) weight | ~2,585–2,635 kg (5,699–5,811 lb) by spec |
| GVWR | ~3,350 kg (7,385 lb) |
| Fuel tank | 93 L (24.6 US gal / 20.5 UK gal) main; auxiliary tank availability varies by market |
| Seating | 7 seats (most EU trims) |
Performance and Capability
| Metric | Value |
|---|---|
| 0–100 km/h (0–62 mph) | ~8.2 s |
| Top speed | ~210 km/h (130 mph) |
| Braking (100–0 km/h) | Typically 38–42 m (setup dependent) |
| Towing capacity (braked/unbraked) | 3,500 / 750 kg (7,716 / 1,653 lb) |
| Payload | ~650–750 kg (1,433–1,653 lb) |
| Roof load | ~100 kg (220 lb) with approved rails |
Fluids and Service Capacities (typical EU spec)
| System | Specification | Capacity* |
|---|---|---|
| Engine oil | Low-SAPS ACEA C2/C3, 5W-30 preferred | ~9.0–9.5 L (9.5–10.0 US qt) |
| Engine coolant | Long-life ethylene glycol, Toyota Super Long Life Coolant (pink) 50/50 | ~14–16 L (14.8–16.9 US qt) |
| Automatic transmission | Toyota ATF WS | ~10–12 L (10.6–12.7 US qt) total fill |
| Transfer case | Toyota ATF WS (market-specific) | ~1.3–1.6 L (1.4–1.7 US qt) |
| Front differential | 75W-85 GL-5 | ~1.4–1.5 L (1.5–1.6 US qt) |
| Rear differential | 75W-85/90 GL-5 | ~3.0–3.2 L (3.2–3.4 US qt) |
| A/C refrigerant | R134a | ~1,000–1,100 g (35–39 oz) |
| A/C compressor oil | ND-OIL 8 (PAG) | ~120–150 mL (4.1–5.1 fl oz) |
| Key torque (wheel nuts) | 131 Nm (97 lb-ft) | — |
- Capacities vary slightly by year/market; always confirm by VIN in the official service literature.
Safety and Driver Assistance
| Area | Detail |
|---|---|
| Crash testing | Euro NCAP did not publish a result specific to this 200-series variant; no IIHS testing (non-US model). |
| Passive safety | Front, side, curtain, and driver’s knee airbags; active headrests; ISOFIX/LATCH points in second row. |
| Stability and traction | VSC stability control, A-TRC traction control, ABS/EBD/BA standard. |
| Lighting | Projector headlamps; headlamp washers; auto-levelling; headlight performance unrated by IIHS. |
| ADAS (availability) | Park sensors/camera common; advanced AEB/ACC/lane assist not typical on 2008–2015 EU VDJ200. |
Trims, options and safety
Trims and equipment. European markets typically offered the VDJ200 in a single high-grade specification with options/packs layered by country. Common equipment included leather upholstery, heated/electric front seats, premium JBL navigation/audio, keyless entry, and tri-zone climate. Many UK and Western EU vehicles added AVS/AHC suspension, 20-inch wheels, and a powered tailgate. A seven-seat interior was standard or near-universal; the third row folded to the side to maximise the flat load floor.
Mechanical differences by trim. Across Europe, the drivetrain was broadly the same: 1VD-FTV twin-turbo V8, six-speed automatic, full-time 4×4 with low range and a lockable centre differential. A rear differential lock was widely fitted as standard in higher-spec grades. Wheel/tyre packages varied—285/60 R18 for all-terrain bias or 285/50 R20 for road-comfort bias. Tow packages typically included wiring and an upgraded cooling stack.
Year-to-year changes. Minor updates during this window brought infotainment and seating refinements, plus emissions-related calibration changes (Euro 4 to early Euro 5). Later 200-series updates (outside this 2008–2015 scope) added more off-road electronics (Multi-terrain Select, Crawl Control) in some markets.
Safety systems. VSC with A-TRC, ABS with EBD and Brake Assist, hill-start assist, and Downhill Assist Control were common. Airbag coverage is comprehensive for the era: dual front, side, full-length curtains, and a driver knee airbag. ISOFIX/LATCH anchorages in the second row simplify child-seat fitment. Advanced driver assistance (automatic emergency braking, adaptive cruise, lane centring) was not part of the core package in these years; calibration after windscreen replacement generally involves basic camera/radar alignment only if so equipped, which most 2008–2015 EU diesels were not.
Quick identifiers. VDJ200s carry V8 D-4D badging, twin tailpipes on one side, and a distinct bonnet bulge. Inside, the V8 diesel tachometer redline is lower than petrol models, and many EU diesels feature an economy/Power dial and AHC height switch near the shifter. VIN/engine code confirmation: frame code “VDJ200” and engine family “1VD”.
Reliability and known issues
Big picture. With regular servicing and quality fluids, the VDJ200 is a long-life platform. The diesel V8 works under low specific stress thanks to its displacement and twin turbos; the automatic is under-stressed in road use; the ladder frame resists fatigue. Most problems arise from age, mileage, environment (road salt), and heavy towing rather than poor design.
Common (low–medium severity, typical after 150–250k km):
- Front suspension bushings/ball joints: Clunks over rough roads, wandering on the motorway. Remedy: renew lower control arm rear bushes and ball joints; align to factory spec; expect a notable improvement in straight-line stability.
- Rear control arm bushes and panhard rod bushes: Thumps and rear-axle steer under throttle. Remedy: bushing kits; check ride-height sensors (AHC) at the same time.
- Brake shudder under heavy towing: Often pad material transfer/uneven rotor deposits. Remedy: bed-in correctly or skim/replace rotors; use tow-rated pads; verify hub run-out.
- EGR soot and intake deposits: More prevalent with short trips/low-quality diesel. Symptoms: hesitation, increased fuel use. Remedy: periodic EGR/intake cleaning; software updates where applicable; maintain correct thermostat temps.
Occasional (medium severity, 150–300k km):
- Injector seat/seal leakage: Diesel smell on cold start, black tar around injectors (“black death”). Root cause: copper washer hardening/erosion. Remedy: replace injector seals/washers and clean the injector bores; reset pilot learn values; consider new injector hold-downs/bolts.
- DPF (if fitted by market) ash loading: Frequent regens, reduced performance. Remedy: forced regen; check differential pressure sensor; in high mileage cases, professionally clean or replace.
- Turbocharger issues: Wastegate/actuator control faults or bearing wear on high-mileage/tow vehicles. Remedy: diagnose vacuum/stepper control first; rebuild/replace turbos if shaft play or compressor contact present; ensure oil feed/return are healthy.
Rare (high severity, mixed mileage):
- Head gasket failure: Overheating under sustained heavy load may precede it. Remedy: pressure test, chemical block test; if confirmed, head removal and gasket replacement; inspect cooling system thoroughly.
- Transfer case chain stretch (extreme use): Rattle or slip in high-torque low-range operation. Remedy: rebuild with new chain/sprockets; renew seals.
Electrics and ancillaries:
- Alternator wear: High loads from accessories and winches; look for charge warnings under winching. Remedy: test output; replace with OE-quality unit; verify earths.
- Height-control (AHC) spheres/struts (if equipped): Bouncy ride, uneven heights. Remedy: system health check; spheres and fluid replacement; recalibration.
Recalls/TSBs. EU campaigns affecting the 200-series diesel during this period were limited; market-specific actions occur. Always run a VIN through the official recall portal and dealer records. Service bulletins in Europe have addressed drivability calibrations (smoke/hesitation), EGR valve learn, and occasional turbo control updates. Verification: ask for printed dealer service action completion reports and software calibration IDs.
Pre-purchase checks.
- Full service history with annual oil changes (low-ash 5W-30) and fuel filter replacements.
- Evidence of cooling system maintenance (fresh coolant, hoses, clean radiator stack).
- Suspension inspection on a lift: arm bushes, ball joints, shocks/struts, and AHC components.
- Driveline slack/noise: prop shaft U-joints, diff/backlash check, transfer case leaks.
- Underside corrosion at frame rails, rear axle/arms, body seams, and tow-bar mounts.
- Diesel health: cold-start smoothness, injector compensation values (scan tool), minimal smoke under load, steady boost.
Maintenance and buyer’s guide
Practical maintenance schedule (EU diesel V8). Use time or distance, whichever comes first.
- Engine oil and filter: 10–15k km (6–10k mi) / 12 months; ACEA C2/C3 5W-30, low-SAPS.
- Fuel filter: 20–30k km (12–18k mi) or when water-in-fuel lamp shows; drain separator at each service.
- Engine air filter: Inspect every 15k km; replace 30–45k km (dusty use: sooner).
- Cabin filter: 15–20k km or 12 months.
- Coolant (SLLC pink): First at 160k km (100k mi) or 10 years, then every 80k km (50k mi) / 5 years.
- Accessory belts and hoses: Inspect each service; replace at first cracks/noise or 90–120k km.
- Automatic transmission (ATF WS): Fluid condition check 60k km; refresh 90–120k km (towing/overland: 60–90k km).
- Transfer case/differentials (GL-5): 60–80k km; sooner with wading or towing.
- Brake fluid: Every 2 years; flush completely.
- Brake pads/rotors: Inspect each service; expect fronts 30–60k km and rears 40–80k km depending on load.
- Steering/suspension: Annual alignment; inspect LCAs/RCAs, panhard rod, sway-bar links, and shock leakage.
- Wheel bearings: Check play/noise annually; repack/replace as needed.
- 12 V battery: Test annually after year 4; typical life 5–7 years.
- DPF/EGR (if fitted): Monitor regen frequency; clean EGR and intake at 100–150k km in city-driven trucks.
Fluids and values owners ask about.
- Engine oil capacity: ~9.0–9.5 L (9.5–10.0 US qt) with filter.
- Coolant capacity: ~14–16 L (14.8–16.9 US qt), 50/50 premix.
- ATF total fill: ~10–12 L; drain/fill is less.
- Differentials: ~1.5 L front; ~3.1 L rear.
- Wheel-nut torque: 131 Nm (97 lb-ft).
DIY tips. Use a scan tool capable of injector feedback values and DPF/soot load (if equipped). Keep the radiator/intercooler/trans cooler stack free of debris; towing and slow off-road work raise under-bonnet temps. If the truck runs AVS/AHC, handle height sensor linkages gently and avoid pressure-washing them.
Buyer’s checklist.
- Frame and mounts: Tap the frame rails with a ball-peen; look for scaling near rear lower control arm mounts and tow brackets.
- Cooling stack: Remove the top shroud and inspect between A/C condenser and radiator for mud/seed buildup.
- Driveline: Listen for clunks on throttle on/off; check prop shaft slip-yoke lubrication.
- Axle breathers: Ensure extended breathers are clear—water crossings can pull moisture into diffs/transfer.
- Electrics: Check all seat motors, heater elements, mirror fold, and parking sensors; confirm height control raises/lowers evenly if equipped.
Which years to target. Condition trumps year. Earlier (2008–2011) trucks may be Euro 4; later (2012–2015) calibrations improved emissions and drivability. Prioritise examples with documented fluid services, recent suspension refresh, clean injector seating work, and cooling-system care. Avoid neglected tow vehicles showing blue/grey smoke, overheating history, or AHC warning lights.
Durability outlook. With preventative maintenance, 400–600k km (250–375k mi) on the original long block and transmission is achievable. The heavy chassis, low-stress torque delivery, and conservative tune give the VDJ200 an unusually long useful life compared with lighter SUVs.
Driving and performance
Ride and NVH. The VDJ200 is quiet and composed for a ladder-frame 4×4. Hydraulic steering filters kickback without feeling numb, and the body remains settled at motorway speeds. On 20-inch wheels, sharp-edge impacts are more noticeable; 18-inch packages ride more fluidly and offer better gravel compliance. Under heavy braking with a trailer the chassis stays straight and predictable—pedal feel is firm, and fade resistance is good with healthy rotors and pads.
Handling. Expect moderate roll and understeer when pushed; this is a two-and-a-half-tonne seven-seater. AVS firms up damping in fast direction changes, and the rear live axle tracks cleanly over broken surfaces. On poor roads, the long wheelbase and weight make it exceptionally stable.
Powertrain character. The twin-turbo 1VD-FTV generates effortless mid-range thrust; it feels strongest from 1,600–3,000 rpm where the 650 Nm plateau lives. Turbo lag is modest; the second turbo comes on progressively, and the six-speed’s broad 1st and tall 6th make both crawling and cruising easy. Kick-down is decisive but not frantic; the gearbox prefers torque—short-shifting under load to keep revs low.
Real-world economy. Mixed use typically returns 10.5–12.0 L/100 km (22.5–19.6 mpg US), trending to 13–15 L/100 km (18–16 mpg US) with large tyres, roof gear, or heavy urban duty. Cold weather and short trips raise consumption; steady 110–120 km/h motorway runs can match the official ~10.2 L/100 km if unladen.
Off-road behaviour. Low range and a lockable centre diff provide consistent traction; the rear locker (if fitted) is a real advantage on cross-axle terrain. Ground clearance (225 mm) and the 30°/20° approach/departure angles are adequate stock; with careful line choice and tyres aired down, it manages ruts, rocks, and muddy climbs with ease. Hill-start assist and Downhill Assist Control help on awkward slopes. Underbody shielding is good from the factory; frequent rock work benefits from additional skid protection.
Load and towing. With a 3,500 kg braked capacity, stability is the standout. The long wheelbase and weight reduce trailer sway, and transmission temps remain healthy if the cooling stack is clean. Expect a 20–35% fuel-use penalty when towing 2,500–3,500 kg. Use load-levelling bars within legal limits, verify towball load, and keep tyres at the higher end of recommended pressures.
Selective metrics (typical EU spec on 18–20-in tyres):
- 0–100 km/h (0–62 mph): ~8.2 s
- 50–80 mph (80–120 km/h): ~6.0–6.5 s kick-down
- 100–0 km/h braking: ~38–42 m depending on tyres and load
- Turning circle: 11.8 m kerb-to-kerb
VDJ200 versus rivals
Land Rover Discovery 4 (SDV6, 2009–2016). The Disco rides and handles better on-road and offers richer interiors, but long-term maintenance is costlier (air suspension compressors, crankshaft risks on some V6 diesels). Towing stability is excellent on both; the Toyota wins for durability and parts longevity in high-mileage use.
Range Rover (L322 TDV8, 2007–2012). The TDV8 is quicker and more refined, but electronics and air-suspension upkeep can be demanding. The Land Cruiser’s simpler, more conservative engineering is a better fit for remote touring and owners who value uptime over luxury features.
Mercedes-Benz GL (X164 420/450 CDI). Spacious and comfortable with strong diesel V8s, but more complex air suspension/4MATIC hardware and corrosion on early examples raise ownership risk. The Toyota is easier to keep for 10–15 years and holds value better in overland circles.
Jeep Grand Cherokee WK2 (3.0 CRD). Lighter and more efficient; off-road hardware is capable when optioned with low range and air suspension. However, payload and tow ratings are lower, and long-term robustness under heavy trailers is better with the Toyota’s frame and axles.
Bottom line. If you need a seven-seat diesel 4×4 that tows hard, absorbs punishment, and stays serviceable beyond 300,000 km, the VDJ200 is the conservative, low-drama choice. Rivals can be quicker or more stylish; few are this consistent over decades.
References
- LandCruiser_fulltxt_UK.pdf 2008 (Press Pack, Specifications)
- 2008 Land Cruiser V8 2008 (Press Information)
- Landcruiser 1951-Present Timeline.pdf 2018 (Model History, EU Output)
- Vehicle Information Area 2024 (Official VIN/Recall Check Portal)
Disclaimer
This article is for informational purposes and does not replace professional diagnosis, repair, or manufacturer guidance. Specifications, torque values, service intervals, and procedures vary by VIN, market, equipment, and production changes. Always confirm against your vehicle’s official owner’s manual and service documentation, and follow local regulations.
If this guide helped, please consider sharing it with fellow owners on Facebook or X/Twitter to support xcar’s work.
