The second-generation Toyota Prius (NHW20) landed as a purpose-built hybrid with real family space and a sophisticated powertrain that still feels coherent today. Its 1NZ-FXE 1.5-liter Atkinson-cycle four works in concert with a permanent-magnet motor and a planetary eCVT to deliver a system rating of 110 hp, excellent drivability in the city, and standout fuel economy. Owners value the simple cabin ergonomics, a hatchback that swallows luggage like a compact wagon, and a hybrid system engineered for longevity. Compared with the first-gen car, the NHW20 is quieter, roomier, more efficient at highway speeds, and backed by wider parts availability. While age introduces typical concerns—cooling pumps, electronic modules, and wear in the brake actuator—the Prius remains inexpensive to run when maintained on time with correct fluids. For shoppers seeking low total cost of ownership and practical efficiency, this model years 2003–2005 Prius is still a sweet spot.
Fast Facts
- Smooth hybrid drive with real-world economy ~4.9–5.6 L/100 km (48–42 mpg US) mixed, strong city efficiency.
- Big-car interior space in a compact footprint; versatile hatch and flat load floor.
- Proven hybrid components with broad parts availability keep running costs low.
- Watch for aging coolant pumps, MFD/cluster glitches, and ABS actuator noise; budget diagnostic time.
- Typical service touchpoint: engine oil and tire rotation every 5,000–7,500 mi (8,000–12,000 km) or 6–12 months.
What’s inside
- NHW20 Prius: Detailed Overview
- Prius NHW20: Specifications and Technical Data
- Trims, Options and Safety Tech
- Reliability and Service Actions
- Maintenance and Buyers Guide
- Driving and Real-World Performance
- How Prius Compares to Rivals
NHW20 Prius: Detailed Overview

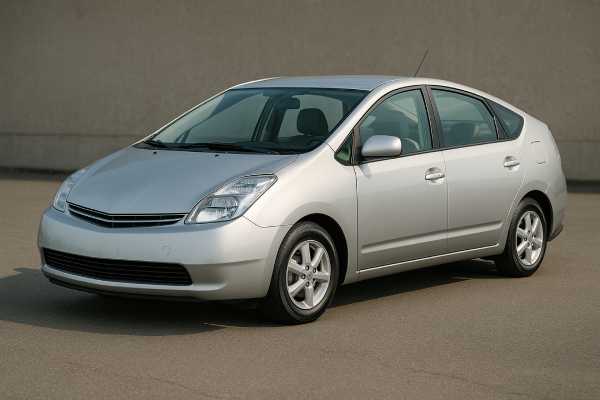

Toyota’s NHW20 Prius (2003–2005 here) is the first Prius most people picture: a five-door liftback with a spacious rear seat, large hatch, and a hybrid system refined enough for mainstream drivers. The recipe pairs a 1.5-liter 1NZ-FXE Atkinson-cycle inline-four with a high-torque AC synchronous motor, a compact NiMH battery (nominal 201.6 V), and a P112 planetary eCVT that blends power sources seamlessly. The engine emphasizes efficiency over peak output via late intake valve closure and a 13.0:1 compression ratio, while the motor supplies launch torque and regenerative braking. Result: calm, linear acceleration in traffic and low consumption even when the engine cycles on and off frequently.
Packaging is a core advantage. With a 106.3-inch (2,700 mm) wheelbase, the Prius rides like a larger car yet parks easily. The hatchback layout provides genuinely useful cargo volume and a low load lip, and the rear seat folds almost flat. Aerodynamics (Cd ~0.26) and low-rolling-resistance tires help the Prius retain efficiency at higher speeds; the hybrid system also recovers downhill energy that a conventional compact would waste as heat.
Safety performance took a step forward over the first generation, with a stronger body structure, available stability control, and side/curtain airbags offered widely in option packages during these early years. Notably, the NHW20 dispenses with a traditional alternator and hydraulic power steering pump; an inverter-driven DC-DC converter supplies 12-volt systems and an electric rack handles steering assist. That simplification trims failure points but makes correct coolant (Toyota Super Long Life Coolant, pink) and proper bleed procedures important for long life of both the engine and inverter loops.
In ownership terms, the Prius rewards routine service: timely coolant exchanges, iridium plugs at long intervals, and clean cooling paths keep the hybrid electronics happy. The most common age-related hiccups—combination meter or MFD (multi-function display) glitches, inverter water pump failures, and brake actuator noise—are well understood with known diagnostic paths and parts. If you want efficient commuting and reliable running on a sensible budget, this Prius generation still sets the template.
Prius NHW20: Specifications and Technical Data
Powertrain & Efficiency
| Item | Specification |
|---|---|
| Code | 1NZ-FXE (ICE), permanent-magnet traction motor (MG2), NiMH battery |
| Engine layout & cylinders | Inline-4, DOHC, 4 valves/cyl |
| Bore × Stroke | 75.0 × 84.7 mm (2.95 × 3.33 in) |
| Displacement | 1.5 L (1,497 cc) |
| Induction | Naturally aspirated (Atkinson cycle) |
| Fuel system | Multi-point fuel injection (PFI) |
| Compression ratio | ~13.0:1 |
| Max engine power | ~76 hp (57 kW) @ ~5,000 rpm |
| Max engine torque | ~115 Nm (85 lb-ft) @ ~4,000 rpm |
| Electric motor (MG2) | ~67 hp (50 kW), ~400 Nm (295 lb-ft) at low rpm |
| System output | 110 hp (82 kW) |
| Battery | NiMH, 201.6 V nominal, ~6.5 Ah (~1.3 kWh gross) |
| System voltage | ~200–500 V operating range |
| Timing drive | Chain |
| Rated economy (EPA adjusted) | 4.9 L/100 km combined (46 mpg US / 55 mpg UK) |
| City / Highway (EPA) | 4.9 / 5.2 L/100 km (48 / 45 mpg US) |
| Real-world highway @ 120 km/h (75 mph) | ~5.0–5.6 L/100 km (47–42 mpg US / 56–50 mpg UK), temperature and wind sensitive |
| Aerodynamics | Cd ≈ 0.26; frontal area ~2.2 m² (23.7 ft²), approximate |
Note: System horsepower is not a simple sum of engine and motor ratings; it reflects power blending through the eCVT and battery limits.
Transmission & Driveline
| Item | Specification |
|---|---|
| Transmission | Planetary eCVT (P112) hybrid transaxle |
| Drive type | Front-wheel drive |
| Final drive | Fixed reduction within transaxle (no stepped ratios) |
| Differential | Open |
| Refuel to full | ~3–5 min (gasoline) |
Chassis & Dimensions
| Item | Specification |
|---|---|
| Suspension (front/rear) | MacPherson strut / torsion beam |
| Steering | Electric power rack-and-pinion; quick ratio for class |
| Brakes | Front ventilated disc ~255 mm (10.0 in); rear drum ~228 mm (9.0 in) |
| Wheels/Tires | 185/65 R15 (15-in rims), low-rolling-resistance |
| Ground clearance | ~130 mm (5.1 in) |
| Length / Width / Height | 4,450 / 1,725 / 1,480 mm (175.2 / 67.9 / 58.3 in) |
| Wheelbase | 2,700 mm (106.3 in) |
| Turning circle (curb-to-curb) | ~10.4 m (34.1 ft) |
| Curb weight | ~1,310–1,330 kg (2,888–2,932 lb) depending on equipment |
| GVWR | ~1,770 kg (3,902 lb) |
| Fuel tank | 45 L (11.9 US gal / 9.9 UK gal) |
| Cargo volume | ~408 L (14.4 ft³) seats up; ~1,100+ L (~39 ft³) seats down (SAE) |
Performance & Capability
| Metric | Value |
|---|---|
| 0–100 km/h (0–62 mph) | ~10.5–11.0 s (tire and load dependent) |
| Top speed | ~166–170 km/h (103–106 mph) |
| Braking 100–0 km/h | ~38–41 m (125–135 ft) on all-season LRR tires |
| Payload | ~375–430 kg (825–950 lb) typical for class |
Fluids & Service Capacities
| System | Specification / Capacity |
|---|---|
| Engine oil | API SL/SM 5W-30; 3.5 L (3.7 US qt) with filter |
| Engine coolant loop | Toyota Super Long Life Coolant (pink, HOAT); ~5.5–6.0 L (5.8–6.3 US qt) after full bleed |
| Inverter/motor coolant loop | Toyota SLLC (pink); ~2.5–3.5 L (2.6–3.7 US qt) after bleed |
| Hybrid transaxle | Toyota ATF WS; ~3.5–4.0 L (3.7–4.2 US qt) drain/fill |
| A/C refrigerant | R-134a; ~450 ± 30 g (16.0 ± 1.1 oz); compressor oil ND-11, ~130 mL (4.4 fl oz) |
| Key torque examples | Wheel nuts 103 Nm (76 lb-ft); transaxle drain/fill plugs ~39 Nm (29 lb-ft); spark plugs ~14 Nm (10 lb-ft) |
Electrical
| Item | Specification |
|---|---|
| Alternator | None (DC-DC converter from HV battery) |
| 12V battery | AGM/JIS S46B24R, ~45 Ah; compact rear-mounted |
| Spark plugs | Iridium (e.g., Denso SK16R11 / NGK IFR5A11); gap 1.1 mm (0.043 in) |
Safety & Driver Assistance
| Category | Details |
|---|---|
| Crash ratings (IIHS) | Moderate overlap front Good; side Good with optional side airbags (Poor without); head restraints/seats Marginal; ratings apply to 2004–2009. |
| Headlight rating (IIHS) | Not evaluated in this period. |
| ADAS availability | ABS, EBD, Brake Assist standard; traction control standard; Vehicle Stability Control (VSC) optional in early packages; no AEB/ACC/lane support in these years. |
| Child seat provisions | Rear LATCH anchors; ample rear door aperture for installation. |
Trims, Options and Safety Tech
Trims and option structure (2003–2005)
Early NHW20s in this window generally came as a single mechanical specification with escalating option packages rather than distinct trims. Core mechanicals—1NZ-FXE engine, eCVT P112, front-wheel drive—are the same across cars. The differentiators are feature bundles and a few key safety items.
Common elements in U.S./Canada packages for these years include:
- Convenience/Comfort: Smart Key System (driver’s door proximity unlock), automatic climate control, steering-wheel audio controls, illuminated entry, and alloy wheels with 185/65R15 LRR tires.
- Infotainment tiers: Standard MFD (multi-function display) for energy/consumption and HVAC; optional navigation integrated into the MFD on upper packages. JBL audio with more robust amplification/speakers appears in higher bundles.
- Lighting: Halogen headlamps standard; HID headlamps optional in specific packages (with automatic leveling on some builds).
- Safety add-ons: Side torso airbags and side curtain airbags offered widely in 2004–2005 as options; VSC (stability control) optional in a number of packages.
- Driver aids: Backup camera was not broadly available until later model years (introduced for 2006 packages), so most 2003–2005 cars rely on mirrors and MFD energy screens only.
Quick identifiers
- VSC cars often have a VSC button or indicator in the instrument cluster’s self-check.
- HID cars show projector housings with automatic leveling motors; replacement ballasts are a known wear item with age.
- Side/curtain airbag presence can be confirmed via “SRS AIRBAG” tags on seat bolsters and roof rails, and by build sheet or VIN decode.
Year-to-year notes affecting early buyers
- 2004 launch (U.S. MY): All-new body and interior; most safety content optional by package.
- 2005: Minor running updates to option package availability and audio/navigation software; hardware essentially unchanged.
Safety ratings summary and context
- IIHS results are strong for structure and frontal protection. Side-impact performance depends on the presence of optional side/curtain airbags on 2004–2006 cars. From 2007 onward those bags became standard, but that is outside the 2003–2005 scope here.
- ESC/VSC significantly improves stability on slick surfaces; its absence is noticeable on sudden maneuvers at highway speed with winter tires. If you drive in snowbelt regions, prioritize cars equipped with VSC and side/curtain airbags when shopping these early years.
ADAS calibration implications after service
- The NHW20 has no camera/radar AEB or lane systems, so no post-collision or windshield-replacement camera calibrations are required. After steering repairs/alignment, perform a straight-ahead steering angle sensor initialization through the diagnostic menu. Brake actuator work requires proper bleed using the hybrid system’s active pump routine.
Reliability and Service Actions
At a glance
The NHW20’s hybrid hardware is robust when cooled and bled correctly. Age-related issues cluster around pumps, electronic modules, and brake hydraulics. Below is a practical mapping by prevalence and severity.
Common (high prevalence) / Low–Medium cost
- Inverter coolant pump failure → Symptoms: red triangle, hybrid system warnings, reduced power; sometimes gurgling in inverter reservoir. Cause: internal wear/bearing failure. Remedy: replace inverter electric water pump; bleed inverter loop carefully; update harness clips if brittle.
- 12V auxiliary battery weakness → Symptoms: intermittent warning lights, no-start, odd MFD behavior. Cause: aging AGM small-case battery. Remedy: test annually after 4 years; replace with correct AGM S46B24R; verify vent tube routing.
- MFD (multi-function display) intermittent touch or blackouts → Symptoms: HVAC/audio controls locked or unresponsive. Cause: cracked solder joints on the MFD board in early units. Remedy: reflow/repair at specialist or replace MFD; confirm latest software; verify connectors.
Occasional (medium prevalence) / Medium–High cost
- Brake actuator/accumulator noise and DTCs → Symptoms: frequent pump cycling, ABS/VSC lights, spongy pedal. Cause: internal accumulator leakage or valve body wear. Remedy: replace actuator assembly; perform Techstream bleed and calibrations; inspect 12V battery before condemning actuator.
- Combination meter (instrument cluster) failure → Symptoms: cluster dark, no speedometer, car may not shut off without workaround. Cause: aging voltage regulator and cold joints. Remedy: repair/rebuild or replace the combination meter; ensure correct odometer handling and immobilizer sync.
Occasional / Low–Medium cost
- Engine water pump seepage (belt-driven) → Symptoms: pink crust around pump, coolant loss, P148F/P0117 variants. Remedy: replace pump and belt; flush engine coolant loop with Toyota SLLC.
Rare (low prevalence) / Medium–High cost
- HV battery module imbalance (P0A80) → Symptoms: SoC swings, fan loud, reduced power. Cause: one or more NiMH modules out of spec. Remedy: best practice is quality reman or new pack; clean/inspect battery cooling fan and duct; verify connectors for corrosion.
- Transaxle bearings noise → Symptoms: whine varying with road speed. Cause: bearing wear. Remedy: fluid analysis, then rebuild/replace transaxle if confirmed; use ATF WS and check for metallic debris.
Recalls and campaigns (high-level)
- Steering intermediate shaft: inspection/replacement campaign covered 2004–early 2006 vehicles. Risk: loss of steering control if the shaft wears or cracks. Owner action: verify completion by VIN check and dealer records.
- Hybrid electric water pump: recall covered 2004–2009 Prius to replace the inverter electric water pump. Risk: overheating of hybrid electronics, warnings/limp mode. Owner action: verify recall status and remedy performed.
Software and calibration updates
- Periodic ECM/HV ECU reflashes addressed drivability and diagnostic robustness. When buying, ask for printouts of ECU calibration IDs or service history indicating completed updates, especially after hybrid component repairs.
Pre-purchase checks to request
- Full service history with dates/mileage, VIN recall check printout, recent coolant services (engine and inverter) with Toyota SLLC, brake fluid change proof, MFD/combination meter repair receipts, and a hybrid battery State-of-Health assessment (professional scan showing module balance and internal resistance). Inspect for front subframe corrosion in road-salt regions and verify spare tire well is dry (hatch weatherstrip condition).
Maintenance and Buyers Guide
Practical maintenance schedule (distance/time)
(Intervals are typical for this generation; always verify by VIN and usage pattern.)
- Engine oil & filter: every 5,000–7,500 mi (8,000–12,000 km) / 6–12 months, 5W-30 meeting Toyota spec; check level quarterly—Atkinson engines are gentle on oil but age can increase consumption.
- Engine air filter: inspect 15,000 mi (24,000 km); replace ~30,000 mi (48,000 km) or dusty use sooner.
- Cabin air filter: 15,000–20,000 mi (24,000–32,000 km) or 12–18 months.
- Coolant (engine loop): first at 100,000 mi (160,000 km) / 10 years, then every 50,000 mi (80,000 km) / 5 years with Toyota SLLC; bleed carefully.
- Inverter/motor coolant loop: same interval and coolant as engine loop; verify pump operation at key-on (reservoir swirl).
- Spark plugs (iridium): 120,000 mi (192,000 km) / 10–12 years; torque ~14 Nm.
- Fuel filter: in-tank; service only if pressure/volume tests indicate restriction.
- Hybrid transaxle fluid (ATF WS): not always listed as a normal-service item; best practice 60,000–100,000 mi (96,000–160,000 km) drain/fill to manage wear metals.
- Brake fluid: every 2–3 years; use DOT 3 or DOT 4 per shop standard; perform hybrid bleed procedure.
- Brake pads/rotors: inspect every tire rotation; regen can leave rear drums underused—clean/adjust to prevent corrosion and grab.
- Serpentine/aux belt: inspect each oil change; replace 60,000–90,000 mi (96,000–145,000 km) or if cracked/noisy (drives engine water pump).
- 12V AGM battery: test annually after 4 years; typical replacement 5–7 years.
- HV battery and cooling: inspect/clean cooling fan and duct every 60,000–90,000 mi—pet hair and dust reduce airflow.
- Alignment and tires: rotate 5,000–7,500 mi; check pressures monthly; LRR tires maintain economy.
Fluid specifications and essentials
- Oil: 5W-30 API SL/SM; capacity 3.5 L (3.7 qt).
- Coolant: Toyota Super Long Life Coolant (pink); separate engine and inverter loops.
- Transaxle: Toyota ATF WS only; capacity ~3.5–4.0 L (3.7–4.2 qt) for drain/fill.
- A/C: R-134a with ND-11 (electric-compressor) oil—do not use PAG oils.
- Key torques: wheel nuts 103 Nm (76 lb-ft); engine drain plug ~39 Nm (29 lb-ft); transaxle plugs ~39 Nm (29 lb-ft).
Buyer’s checklist
- Hybrid cooling: reservoir movement (inverter pump), clean fan intake, no red triangle on test drive.
- Electronics: verify MFD touch response in all corners, cluster wake-up, key fob SKS function, and charging of 12V at READY (~13.8–14.0 V).
- Brakes: listen for accumulator cycling every few seconds (excessive cycling hints actuator wear), confirm smooth regenerative-to-friction transition.
- Suspension/steering: clunks on lock-to-lock turns suggest worn intermediate shaft (recall completion matters); check lower control arm bushings.
- Cooling leaks: pink crust at engine water pump weep hole, brittle inverter hoses, dried clamps.
- Underside: corrosion at front subframe and rear beam; inspect hatch floor for moisture.
- Tires: even wear indicates correct alignment and healthy suspension; LRR tires preserve economy.
Recommended specs to seek
- Cars with side/curtain airbags and VSC for best safety margin.
- Documented inverter pump replacement (recall) and recent coolant service.
- MFD/combination meter serviced or verified working reliably.
Long-term outlook
With basic care and quality parts, the NHW20’s hybrid components routinely exceed 200,000–300,000 mi (320,000–480,000 km). Expect periodic 12V battery, water pump(s), and suspension wear items; the HV battery may eventually require replacement due to age rather than mileage.
Driving and Real-World Performance
Ride, handling, and NVH
On stock 15-inch LRR tires and the relatively soft suspension tune, the Prius rides compliantly over broken city pavement and settles quickly after big bumps. Straight-line stability at highway speeds is better than its footprint suggests—helped by the long wheelbase and aero. Crosswinds can nudge the light rear; fresh shocks and proper tire pressures help. Cabin noise is low around town (the engine idles off frequently) and moderate on coarse highway surfaces; the engine note under heavy throttle is a steady hum rather than a revvy growl.
Powertrain character
The eCVT blends motor torque with engine output so the car steps off smoothly from traffic lights. Low-rpm torque from MG2 handles the first car-length cleanly, after which the 1.5-liter engine spins to its efficient band. The Atkinson cycle prioritizes economy over midrange pull; passing from 50–80 mph (80–120 km/h) takes planning and space, but the response is consistent if you floor it early. Engine-off coasting and frequent stop/start transitions are unobtrusive when cooling systems are healthy; you’ll mainly notice it on the tachometer substitute in the MFD energy screen.
Braking and control
The brake-by-wire system regenerates strongly at light pedal pressures, blending to friction braking as you press harder or at low speeds. Pedal feel is a little numb at first travel (typical of early hybrids) but consistent; stopping distances are competitive for the class, and fade is a non-issue in daily use. VSC is a worthwhile option for icy or wet climates—its interventions are early but effective, especially on all-seasons.
Observed efficiency
Owners and test programs routinely report ~4.9–5.6 L/100 km (48–42 mpg US) in mixed driving, with city figures better than highway for many routes thanks to regen and engine-off time. At 100–120 km/h (60–75 mph), expect ~5.0–5.6 L/100 km (47–42 mpg US) depending on temperature, wind, and elevation. Winter with heaters and snow tires can trim economy by 10–20%; pre-warming and correct tire pressures mitigate the hit. Short-trip drivers in cold weather should consider a block heater to get the engine to efficient temps sooner.
Load and grades
With four adults and luggage, the Prius maintains highway speeds but will hold higher revs on long grades. Coolant system health is crucial for sustained climbs; an aging inverter pump can trigger warnings under such loads. The platform is not tow-rated in the baseline market; use a cargo tray or roof box sparingly, as aero penalties at speed can cut economy by 10–15%.
How Prius Compares to Rivals
Honda Civic Hybrid (2003–2005)
Civic Hybrid’s Integrated Motor Assist is lighter but less capable in EV creep and blended torque. The Prius is more efficient in city use, roomier inside, and offers a hatch for cargo versatility. Civic’s manual-trans option (rare) can be engaging, but battery management and pack longevity were more variable in early years. Prius wins for packaging and day-to-day ease.
Honda Insight (Gen 1, 2000–2006)
The original Insight is the hypermiling champ and feels airy and special, but it’s a two-seater with far less utility and higher parts scarcity today. Prius owners enjoy five seats, modern crash structure, and quieter highway manners.
Ford Escape Hybrid (2005)
A different use case: a small SUV with AWD available. The Escape offers upright seating and towing in later guidance, but consumes more fuel and doesn’t match Prius for city efficiency or service simplicity. If you need space and ride height, the Escape is compelling; if you want maximum mpg and compact-car running costs, Prius is the fit.
Toyota Corolla (1.8L, 2003–2005)
A non-hybrid benchmark for low costs. Corolla maintenance is simpler and 0–60 can be similar, but the Prius delivers meaningfully better city mpg, a larger hatch, and a calmer stop-and-go experience. Over high annual miles, fuel savings and reduced brake wear favor the Prius.
Verdict
For commuters and households prioritizing low operating cost, cargo flexibility, and urban efficiency, the NHW20 Prius remains one of the most rational buys from its era. Choose a well-maintained example with documented hybrid cooling service and key recalls completed, and it will do the quiet, efficient work few rivals of its time could match.
References
- Fuel Economy of the 2004 Toyota Prius 2025 (EPA/DOE Database)
- 2004 Toyota Prius 2025 (Safety Rating)
- Vehicle Detail Search – 2004 TOYOTA PRIUS 4 DR | NHTSA 2025 (Recall Database)
- RCONL-06V188-5169 2006 (Recall Notice)
- Official Toyota Prius 2004 safety rating 2004 (Safety Rating)
Disclaimer
This guide is for informational purposes only and is not a substitute for professional diagnosis or repair. Specifications, torque values, service intervals, and procedures vary by VIN, market, options, and production date. Always verify details against your vehicle’s official service documentation and technical bulletins before performing maintenance or repairs.
