The 2019–2021 Toyota RAV4 with the 2.0-liter M20A-FKS and all-wheel drive is the “keep-life-simple” version of the XA50 for four-season regions. It combines Toyota’s Dynamic Force engineering—high compression, dual injection, wide-range valve timing—with a sturdy TNGA-K chassis and a compact on-demand AWD system. Power is modest but predictable; the Direct-Shift CVT (or a 6-speed manual in select markets) emphasizes smooth step-off and low revs at cruise. What sets this configuration apart is ownership calm: long service intervals, chain-driven cams, and few moving parts beyond a clutch-type rear drive coupling. The cabin is practical and quiet enough for long motorway slogs, safety is excellent by contemporary European standards, and running costs stay friendly if you rotate tires and keep software up to date after glass or bumper work. If you need winter traction without hybrid complexity—or simply want the most straightforward petrol RAV4 to own—this 2.0 AWD is the sensible pick.
Fast Facts
- Confident in poor weather: on-demand AWD with drive modes and generous ground clearance.
- Efficient and durable: long-stroke 2.0 with chain timing, dual injection, and calm cruising revs.
- Spacious and usable: square cargo bay, adult-friendly rear seat, easy child-seat fitment.
- Caveat: ADAS and camera/radar modules require calibration after windshield or bumper repairs.
- Typical service: engine oil and filter every 10,000 miles / 12 months (or 15,000 km / 12 months).
What’s inside
- AWD RAV4 2.0 Detailed Overview
- Specifications and Technical Data
- Trims and Options, Safety and Driver Assistance
- Reliability, Common Issues and Service Actions
- Maintenance and Buyer’s Guide
- Driving and Performance
- How RAV4 2.0 AWD Compares to Rivals
AWD RAV4 2.0 Detailed Overview
Toyota’s fifth-generation RAV4 moved to the TNGA-K platform in 2019, bringing a much stiffer body, better crash energy paths, and suspension geometry that improves both compliance and control. In the 2.0-liter AWD configuration, the M20A-FKS inline-four is the heart of the package: long stroke, high tumble intake ports, D-4S dual injection (port plus direct), and a 13.0:1 compression ratio managed by VVT-iE on the intake cam. The aim is high thermal efficiency and smooth torque delivery on regular petrol, without the complexity of forced induction.
AWD is an on-demand system that normally drives the front wheels and engages the rear axle through an electronically controlled multi-plate coupling when traction or stability calls for it. Compared with the heavier off-road-focused systems on some competitors, this layout keeps weight and mechanical losses low. Multi-Terrain drive modes (labels vary by market) alter throttle and traction-control behavior for Snow, Mud & Sand, or Rock & Dirt surfaces; hill-start assist is standard, and downhill assist control appears on upper grades.

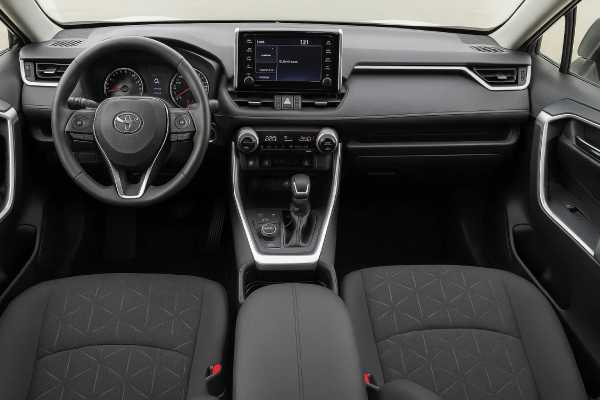

Inside, the XA50 is a big step forward in ergonomics and perceived quality versus the prior generation. You get a high seating point, wide-opening rear doors, and straightforward controls—large knobs for climate and volume, and physical buttons for high-use functions. Cabin storage is excellent (dash shelf, deep console bin, large door pockets), and the cargo area is square with a low liftover. Seat comfort is solid over distance; road noise is mostly tire-dependent, with 17-inch touring rubber being the quietest.
Safety and assistance tech are generous. Toyota Safety Sense 2.0 brings pre-collision braking with pedestrian and cyclist detection, adaptive cruise control, lane departure alert with steering assist, lane tracing (on equipped grades), and automatic high beams. Blind-spot monitoring with rear cross-traffic alert is widely available, while parking sonar with automatic braking and a 360° camera are offered on higher trims. For buyers who want reliable all-weather traction without hybrid or turbo layers to maintain, the 2.0 AWD RAV4 is a balanced, low-risk choice that does daily life extremely well.
Specifications and Technical Data
Engine and Performance (ICE-only)
| Item | Data |
|---|---|
| Code | M20A-FKS (Dynamic Force) |
| Layout & cylinders | Inline-4, DOHC, Dual VVT-i (VVT-iE intake), 4 valves/cyl |
| Bore × stroke | 80.5 × 97.6 mm (3.17 × 3.84 in) |
| Displacement | 1,987 cc (2.0 L) |
| Induction | Naturally aspirated |
| Fuel system | D-4S (direct + port) |
| Compression ratio | 13.0:1 |
| Max power | 173 hp (127 kW) @ ~6,600 rpm |
| Max torque | ~203–208 Nm (150–153 lb-ft) @ ~4,300–5,200 rpm (calibration-dependent) |
| Timing drive | Chain |
| Emissions/efficiency standard | WLTP/EU6 (Europe baseline) |
| Rated efficiency (combined, WLTP)** | ~6.6–7.3 L/100 km (35–31 mpg US; 42–37 mpg UK), by wheel/tyre and transmission |
| Real-world highway @ 120 km/h (75 mph) | ~7.0–7.8 L/100 km (34–30 mpg US; 41–36 mpg UK) |
| Aerodynamics | Cd ~0.32–0.33 (equipment-dependent) |
Transmission and Driveline
| Item | Data |
|---|---|
| Transmission | Direct-Shift CVT (launch gear + belt) or 6-speed manual (market-dependent) |
| Gear ratios | CVT overall range approx. 3.38–0.60; manual close-ratio 1–6 (varies) |
| Final drive ratio | ~3.79–4.01 (by transmission) |
| Drive type | AWD (on-demand) via electronically controlled multi-plate coupling |
| Differential | Open front; electronically controlled coupling to rear |
| Drive modes | Normal, Eco, Sport; Multi-Terrain: Snow, Mud & Sand, Rock & Dirt (grade-dependent) |
Chassis and Dimensions
| Item | Data |
|---|---|
| Platform | TNGA-K unibody |
| Suspension (front/rear) | MacPherson strut / multi-link |
| Steering | Electric power assist; ~11.0–11.4 m (36–37 ft) turning circle |
| Brakes | 4-wheel discs; typical front ~305 mm (12.0 in), rear ~282 mm (11.1 in) |
| Wheels/Tyres | 17–19 in; common AWD fitments 225/65R17, 225/60R18 |
| Ground clearance | ~195–200 mm (7.7–7.9 in), by grade |
| Length / width / height | ~4,600 / 1,855 / 1,685–1,705 mm (181.1 / 73.0 / 66.3–67.1 in) |
| Wheelbase | 2,690 mm (105.9 in) |
| Curb weight | ~1,575–1,645 kg (3,472–3,626 lb), equipment-dependent |
| GVWR | ~2,160–2,220 kg (4,762–4,894 lb) |
| Fuel tank | 55 L (14.5 US gal / 12.1 UK gal) |
| Cargo volume | 580 L VDA seats up / ~1,690 L seats down; ≈ 37.5 / 69.8 ft³ (SAE reference) |
Performance and Capability
| Metric | Value |
|---|---|
| 0–100 km/h (0–62 mph) | ~10.0–11.0 s (CVT slower than 6MT) |
| Top speed | ~190 km/h (118 mph) |
| 100–0 km/h braking | ~38–41 m (62–0 mph: ~125–135 ft) |
| Towing (braked) | up to ~2,000 kg (4,409 lb) when specified; CVT variants may rate lower (check VIN label) |
| Towing (unbraked) | ~750 kg (1,653 lb) |
| Payload | ~450–550 kg (992–1,212 lb) |
| Roof load (dynamic) | ~75 kg (165 lb) with OE rails/crossbars |
Fluids and Service Capacities (owner-use highlights)
| System | Spec / Capacity |
|---|---|
| Engine oil | 0W-16 (ILSAC GF-6B or superseding); approx. ~4.5–4.8 L (4.8–5.1 qt) with filter |
| Coolant | Toyota Super Long Life (pink) premix; capacity varies with HVAC |
| CVT fluid | Toyota-specified CVT family; level set by temperature (no dipstick) |
| Manual gearbox oil | Low-viscosity GL-4/GL-5 per VIN; fill to level plug |
| Rear coupling/diff | Toyota hypoid gear oil; drain/fill by level |
| A/C refrigerant | R-1234yf; charge per under-bonnet label |
| Key torque values | Wheel lugs 103 Nm (76 lb-ft); oil drain plug ~39–41 Nm (29–30 lb-ft) |
Electrical
| Item | Data |
|---|---|
| Alternator | ~130 A class (smart charging) |
| 12-V battery | 45–60 Ah typical (form factor varies by equipment) |
| Spark plugs | Iridium, long-life; gap ~0.8–1.1 mm (0.031–0.044 in) |
Safety and Driver Assistance
| Area | Details |
|---|---|
| Crash ratings | Euro NCAP 2019: 5 stars; strong adult/child/VRU scores |
| Headlight performance | LED projectors common; package/aim influence results |
| ADAS suite | Toyota Safety Sense 2.0: AEB (car/ped/cyclist), adaptive cruise, lane departure alert with steering assist, lane tracing (where fitted), road sign assist, auto high beams; BSM/RCTA widely available; rear cross-traffic braking and 360° camera on upper grades |
Trims and Options, Safety and Driver Assistance
Grade structure (names vary by country; examples shown):
- Entry (Active/Comfort-type): 17-inch wheels, cloth, manual tailgate, core Safety Sense 2.0, smartphone mirroring. Best efficiency and lowest tire costs.
- Mid (Icon/Style-type): Dual-zone climate, keyless entry/start (often optional), larger display, additional USBs, privacy glass.
- Upper (Design/Excel-type): 18-inch wheels, upgraded upholstery (SofTex-style or high-grade cloth), power driver seat, power tailgate, more driver-assist content.
- Flagship (Executive/Lounge-type): Largest screens, premium audio, 360° camera, parking sonar with automatic braking, adaptive/auto-leveling LED headlights where offered.
AWD and transmission availability:
The 2.0 AWD pairing is commonly found with the Direct-Shift CVT; a 6-speed manual AWD exists in select markets. AWD hardware is the clutch-type coupling to the rear axle with brake-based torque control and selectable Multi-Terrain modes. It is designed for snow, wet grass, gravel tracks, and ferry slopes—not rock crawling. Proper winter tires dramatically expand capability.
Options that materially change function:
- Winter Pack: heated seats/wheel, washer jet or wiper de-icer—keeps the lane-camera clear in sleet.
- Tow Prep: factory wiring and cooling details; verify bumper cut-out and harness under the cargo floor.
- Lighting Upgrades: adaptive/projector LED packages can improve beam reach and may influence headlight test outcomes.
- Parking Aids: front/rear sonar with automatic braking and Rear Cross-Traffic Braking; the panoramic 360° camera helps on tight city streets and trailheads alike.
Safety Ratings (summary):
Euro NCAP 2019 assessments yielded five stars for the RAV4 with high adult and child occupant protection and strong vulnerable road user scoring. IIHS testing (North America) is included here only to note that headlight variants can affect award status; in Europe, focus on Euro NCAP and local type-approval.
Child-seat and restraint provisions:
Two Isofix/LATCH positions in the outboard rear seats plus three top tether points across the bench. The cushions and buckle stalks ease booster positioning, and the door apertures help load bulky rear-facing seats. Always consult the manual for center-seat restrictions and combined anchor use.
Year-to-year highlights (2019–2021, Europe baseline):
- 2019: XA50 launch; Safety Sense 2.0 standard; Apple CarPlay widely available (Android Auto rolled in by market in 2020).
- 2020: Broader Android Auto support; multimedia and camera/radar software refinements; options reshuffled.
- 2021: Detail updates to lighting availability, connected services, and head-unit firmware maturity.
Reliability, Common Issues and Service Actions
Overall reliability picture:
The M20A-FKS engine, TNGA-K chassis, and on-demand AWD coupling form a low-drama combination when serviced on schedule. Most field complaints relate to software (multimedia, camera/radar, and occasionally CVT calibration) rather than internal mechanical failures.
Common (low–medium severity):
- Infotainment quirks: Slow boots, Bluetooth drops, or inconsistent CarPlay/Android Auto on early software.
Fix: head-unit firmware update; use certified cables; perform a factory reset after major updates. - Tire/road roar: Noise rises with aggressive winter or off-road-look patterns.
Fix: rotate every 10–12k km; keep pressures on the door-label; consider quieter touring tread for motorway use. - Cargo-area squeaks: Tailgate stops and side cubbies can creak on cobbles.
Fix: felt at contact points; adjust latch preload; grease the striker.
Occasional (medium):
- CVT step-off hesitation or “flare” feel: Despite the launch gear, some cars feel indecisive with old TCM software.
Fix: ECM/TCM update, adaptive relearn drive, and verify fluid level by temperature/overflow procedure. - ADAS warnings after glass/body work: Lane camera or front radar misalignment.
Fix: static/dynamic calibration on a level floor with targets; road-test on well-marked lanes to confirm Lane Tracing Assist behaves.
Less common but important checks:
- Low-pressure fuel pump recall: A subset of vehicles near these years had a pump campaign. Action: run an official VIN recall check and verify replacement history.
- Front suspension fasteners after impacts: Post-pothole or curb strikes may prompt torque checks per service bulletins. Use correct torque values and replace single-use fasteners.
What is rarely an issue here:
Timing chain stretch, heavy oil consumption, or intake valve carbon build-up are uncommon with timely 0W-16 oil changes and the dual-injection strategy. Hybrid-specific concerns (fuel-tank fill behavior, HV components) do not apply to this petrol AWD.
Pre-purchase checklist (used 2.0 AWD):
- Service history proving oil changes at or before 15,000 km / 12 months.
- VIN recall printout; confirm any fuel-pump action and ADAS firmware updates.
- Matched tires with even tread depths; AWD systems prefer sets within 2–3 mm.
- Brake condition: check inner pads and winter corrosion ridges.
- Undercarriage: look for subframe seam corrosion in salt regions; inspect rear coupling/diff for seepage.
- Glass/body: evidence of windshield or bumper replacement—request calibration proof.
Maintenance and Buyer’s Guide
Owner-practical maintenance schedule (Europe baseline; adapt for severe use):
- Engine oil + filter: 15,000 km / 12 months (or 10,000 miles / 12 months). Severe city/short-trip use: 8–12k km. Use 0W-16 meeting current Toyota/ILSAC spec.
- Tire rotation / brake check: 8–10k km / 6 months; keep front shoulders even and watch for saw-tooth wear.
- Cabin filter: Inspect 15k km; replace 15–30k km or 12–24 months depending on air quality.
- Engine air filter: Inspect 15k km; replace 30–45k km sooner in dusty regions.
- Brake fluid: Replace every 3 years regardless of mileage.
- Coolant (SLLC, pink): First change 10 years / 160k km, then 5 years / 80k km.
- Spark plugs (iridium): ~190k km (120k miles); inspect sooner if misfire counts rise.
- CVT fluid: Not routine in normal service; for frequent towing/mountain grades, drain-and-fill at 90–120k km using temperature-set level.
- Manual gearbox oil: Inspect level; change 90–120k km in harsh duty.
- Rear coupling/diff oil: Inspect for level/seepage; severe duty change ~90–120k km.
- Belts/hoses: Inspect every service; typical accessory belt life ~150k km on condition.
- Alignment: Annual check or with any tire replacement; request printouts.
- 12-V battery: Test annually after year 3; replacement window 4–6 years typical.
Fluids and essential torque values (quick reference):
- Oil capacity: ~4.5–4.8 L (4.8–5.1 qt) with filter; replace crush washer; drain plug ~39–41 Nm (29–30 lb-ft).
- Coolant: Toyota Super Long Life Coolant (pink) premix; vacuum-fill when opened.
- Brake fluid: DOT 3/4; avoid mixing brands when possible.
- Wheel lugs: 103 Nm (76 lb-ft) after any wheel/tire service.
DIY tips that save headaches:
- Keep a spare cabin filter; the glovebox access makes swaps a two-minute job.
- Lightly silicone door seals before winter to prevent sticking and squeaks.
- After windshield or bumper work, insist on written ADAS calibration results and a lane-trace road test.
Buyer’s Guide—what to choose/avoid:
- Quiet commuter: Mid-grade with 17-inch wheels and touring tires—best refinement and replacement cost.
- Snow-belt user: Look for Winter Pack, heated elements, and quality winter tires; the AWD system is only as good as the rubber.
- Tow and trailhead: Confirm the tow rating on the VIN label, presence of wiring, and cooler spec; consider shorter CVT service intervals.
- Avoid: Mismatched tires, missing recall/TSB paperwork, and any car lacking ADAS calibration proof after glass/body repairs. Over-lowered springs can upset headlight aim and camera horizon.
Long-term durability outlook:
Plan on 200,000+ km of uneventful service with routine fluids and alignment attention. The Dynamic Force 2.0 is gentle on oil, and the AWD coupling is robust if fluid is clean and tires are matched.
Driving and Performance
Ride, handling, NVH
On TNGA-K the RAV4 feels planted and unflustered. Straight-ahead stability is excellent, helped by a firmer structure and careful bushing. The multi-link rear keeps body motion tidy over broken pavement and speed humps; mid-corner bumps don’t provoke secondary oscillations. Steering assistance is light at parking speeds and builds naturally around center on the motorway. 17-inch tires deliver the best ride/noise blend; 18–19-inch wheels sharpen turn-in at the cost of a little impact thump and extra roar on coarse asphalt. Brake feel is linear, with predictable bite and good fade resistance for family-SUV duty.
Powertrain character
The M20A-FKS is honest: it prefers mid-to-upper rpm when you ask for full pace, but the Direct-Shift CVT’s launch gear makes step-off clean and keeps revs lower in town. Under moderate throttle the CVT uses gentle ratio steps to avoid the old “droning” sensation. The 6-speed manual (where available) is light and accurate, and combined with AWD provides a more connected feel on snow-covered secondary roads. Drive modes are well-judged: Eco softens tip-in for smooth city work, Normal feels natural, and Sport keeps ratios lower for quicker responses.
Real-world efficiency
- City: 8.0–9.5 L/100 km (29–25 mpg US; 35–30 mpg UK) depending on traffic, temperature, and tire choice.
- Motorway (100–120 km/h / 60–75 mph): 6.9–7.8 L/100 km (34–30 mpg US; 41–36 mpg UK).
- Mixed: 7.0–7.6 L/100 km (34–31 mpg US; 41–37 mpg UK).
Cold weather, winter tires, roof boxes, and short trips can add 10–20%. Keeping to 110 km/h instead of 130 km/h pays clear dividends.
Traction and control
The on-demand AWD engages quickly from rest on slick surfaces; Snow mode moderates throttle and shifter logic to limit wheelspin. Brake-based torque control is subtle and effective; with good winter tires, hill starts on packed snow are drama-free. Mud & Sand loosens interventions off-pavement and allows a bit more wheelspin to maintain momentum. Downhill assist control (if fitted) holds walking speeds on steep gravel without overheating the brakes.
Load and towing
With the correct equipment, the 2.0 AWD can tow up to ~2,000 kg (4,409 lb) in certain specifications; many CVT variants rate lower, so always read the VIN/door-jamb label. Expect a 25–40% economy penalty on long grades and plan for S-mode or manual ratio holds to reduce heat and hunting. Dynamic roof load is ~75 kg (165 lb), including crossbars and accessories—factor these into your payload math.
How RAV4 2.0 AWD Compares to Rivals
- Honda CR-V 2.0/1.5T AWD: The CR-V is spacious and the small turbo feels punchy at low rpm, but the RAV4 counters with a simpler naturally aspirated engine, calmer CVT manners in traffic, and excellent predicted residuals.
- Mazda CX-5 2.0/2.5 AWD: The Mazda leads for steering feel and interior tactility. The RAV4 offers more cargo room, higher ground clearance, broader dealer coverage, and a more conservative maintenance picture.
- Hyundai Tucson / Kia Sportage (2.0/1.6T AWD): Feature-rich cabins and long warranties impress. The Toyota answers with robust reliability, a proven ADAS suite, and an easy resale story; AWD calibration is tidy in snow with winter tires.
- Nissan X-Trail/Qashqai AWD: Comfortable and quiet; the Toyota’s tow ratings and cargo space often win for active families.
- Skoda Karoq/Kodiaq 4×4 (TSI): Superb packaging and infotainment polish. The RAV4 responds with long-term durability, paint/interior wear resistance, and simpler NA engine care.
Verdict: The RAV4 2.0 AWD prioritizes predictability: honest power, confident traction, big-car practicality, and low ownership risk. If you value four-season capability without hybrid or turbo layers, it is one of the most balanced choices in the class.
References
- Toyota RAV4 2019 2019 (Safety Rating)
- Owner’s Manual 2019–2021 (Owner’s Manual)
- The new Toyota RAV4 hybrid 2019 (Manufacturer Publication)
- World debut of the all-new Toyota RAV4 2019 (Manufacturer Publication)
Disclaimer
This article is for informational purposes and is not a substitute for professional diagnosis or official service procedures. Specifications, torque values, capacities, safety ratings, and maintenance intervals vary by VIN, production date, market, and equipment. Always verify details against your vehicle’s owner’s manual, service manual, and official regulator/manufacturer databases.
