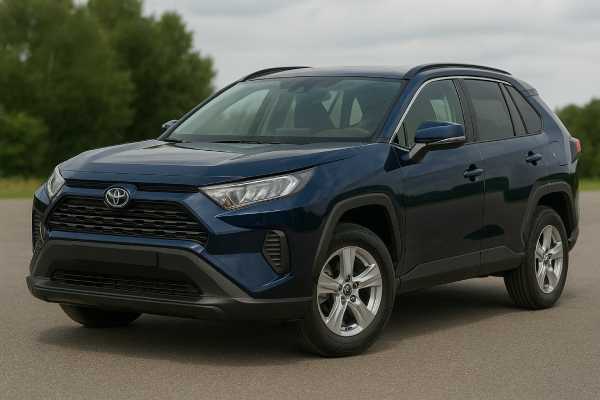

The facelifted Toyota RAV4 AWD with the 2.0-litre M20A-FKS engine occupies a practical middle ground in the XA50 lineup. It keeps the core strengths—durability, packaging, and predictable running costs—while adding the 2022–present updates: crisper LED lighting, larger high-definition screens (up to 10.5-inch centre display and 12.3-inch driver’s display, market dependent), and expanded active safety. The naturally aspirated Dynamic Force four-cylinder pairs with either a six-speed manual (iMT) or Direct-Shift CVT and an on-demand mechanical AWD system with Multi-Terrain Select modes. If you need dependable all-weather traction without the complexity or cost of hybrid ownership, this is the straightforward choice. One note on scope: this 2.0-litre AWD variant is primarily a European and adjacent-market configuration; North America concentrates on 2.5-litre gasoline and hybrid powertrains. Below, you will find a focused, owner-oriented guide covering hard specs, service data, safety information, buying and maintenance advice, and how this RAV4 stacks up against key rivals.
Fast Facts
- Strong everyday efficiency for an AWD petrol SUV: typically 7.3–7.9 L/100 km combined (≈ 32–30 mpg US / 38–36 mpg UK) when driven sensibly.
- Robust packaging: flat load floor and ~580 L (VDA) seats up; simple, proven mechanical AWD with Snow/Mud/Rock modes.
- Updates from 2022: larger HD screens and enhanced safety assists improve usability without hurting reliability.
- Watch for severe-service items: CVT fluid and AWD axle oils benefit from proactive changes if you tow or drive mountainous routes.
- Typical service anchor: engine oil every 10,000–15,000 km (12 months) depending on duty cycle and local schedule.
Guide contents
- RAV4 2.0 AWD: Detailed Overview
- Specifications and Technical Data
- Trims and Options, Safety and Driver Assistance
- Reliability, Common Issues and Service Actions
- Maintenance and Buyer’s Guide
- Driving and Performance
- How RAV4 AWD Compares to Rivals
RAV4 2.0 AWD: Detailed Overview
The M20A-FKS RAV4 AWD is the “quiet achiever” of the XA50 range. It uses Toyota’s latest Dynamic Force 2.0-litre engine, a long-stroke, high-compression (13.0:1) unit designed for real-world efficiency rather than headline power. Output is 173 hp (129 kW) and 208 Nm (153 lb-ft), delivered through either a six-speed intelligent manual (rev-matching downshifts) or a Direct-Shift CVT with a physical launch gear for responsive take-off and smoother low-speed behavior.
AWD is a straightforward, on-demand mechanical system (not the hybrid’s e-AWD). It couples the rear axle via an electronically controlled multi-plate clutch, with selectable Multi-Terrain Select modes (Snow, Mud & Sand, Rock & Dirt) that adjust throttle mapping, torque split, and brake control logic. The philosophy is simplicity: enough traction for slick urban winters, muddy trailheads, or gravel access roads, without the expense or weight of a full-time transfer case.

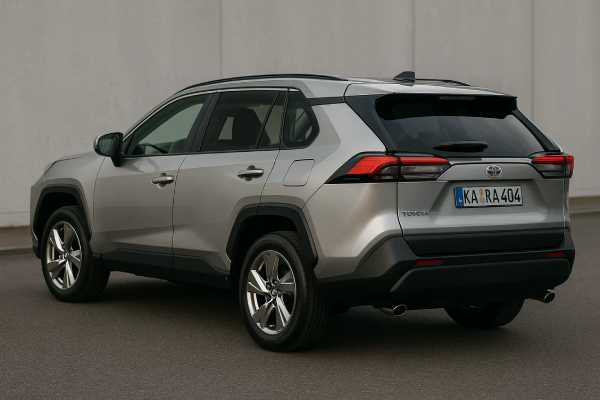

The 2022–present facelift sharpened the look—headlamp signatures, wheel designs—and improved ergonomics substantially. Owners benefit from a more modern infotainment stack (faster processor, higher-resolution screen, expanded voice control) and a configurable driver’s display. Safety also stepped up with broader pre-collision scenarios and emergency steering assist on many grades.
Practicality remains a hallmark. The load bay is wide and square, with ~580 L VDA seats up and a low sill. Rear legroom supports adults comfortably, and door openings are generous for child seats. Running costs are predictable: the engine uses widely available 0W-16/0W-20 oil, the CVT and differentials use standard Toyota-spec fluids, and consumables (pads, rotors, filters) are shared widely across the Toyota portfolio.
Who should buy this variant? Drivers prioritising reliability, predictable ownership costs, and all-weather confidence over outright acceleration. It is also a sensible step up from FWD if you live where winters or wet trailheads are a fact of life, but you do not need the extra mass or complexity of hybrid AWD.
Specifications and Technical Data
Below are focused, scannable tables for the facelift 2022–present Toyota RAV4 AWD with the M20A-FKS 2.0-litre petrol engine (European-market configuration). Figures can vary by trim, wheel/tire package, and local homologation; use these as the correct baseline and verify by VIN for parts and torque values.
Engine and Performance
| Item | Data |
|---|---|
| Code | M20A-FKS (Dynamic Force) |
| Layout & cylinders | Inline-4, DOHC, 16 valves; VVT-iE (intake), VVT-i (exhaust) |
| Bore × stroke | 80.5 × 97.6 mm (3.17 × 3.84 in) |
| Displacement | 2.0 L (1,987 cc) |
| Induction | Naturally aspirated |
| Fuel system | D-4S (direct + port fuel injection) |
| Compression ratio | 13.0:1 |
| Max power | 173 hp (129 kW) @ 6,600 rpm |
| Max torque | 208 Nm (153 lb-ft) @ 4,300–5,200 rpm |
| Timing drive | Chain |
| Rated efficiency (WLTP, combined) | ~7.3–7.9 L/100 km (≈ 32–30 mpg US / 38–36 mpg UK) |
| Real-world highway @120 km/h (75 mph) | ~7.8–8.6 L/100 km (≈ 30–27 mpg US / 36–33 mpg UK) |
| Aerodynamics | Cd — (varies slightly by trim/wheels) |
Transmission and Driveline
| Item | Data |
|---|---|
| Transmissions | 6-speed iMT manual; Direct-Shift CVT (K120) with launch gear |
| Gear ratios | Manual: fixed ratios; CVT: stepless with launch gear (see service data) |
| Final drive | Ratio varies by transmission and wheel/tire; rear axle engaged via multi-plate clutch |
| Drive type | On-demand AWD (front-biased; electronically controlled rear coupling) |
| Differentials | Open (front/rear) with brake-based torque control |
| Terrain modes | Snow; Mud & Sand; Rock & Dirt |
| Refuel to full | ~5 min typical at forecourt |
Chassis and Dimensions
| Item | Data |
|---|---|
| Platform | TNGA-K |
| Suspension (front/rear) | MacPherson strut / trailing-arm double-wishbone multi-link |
| Steering | Electric power steering (rack-assist); ratio varies by wheel package |
| Brakes | Ventilated front disc / solid rear disc (diameter varies by trim) |
| Wheels/Tires | 225/65 R17; 225/60 R18; 235/55 R19 (market/trim dependent) |
| Ground clearance | ~195 mm (7.7 in) |
| Angles | Approach ~20°, departure ~18°, ramp ~15.5–16° |
| Length / Width / Height | ~4,600 / 1,855 / 1,685 mm (181.1 / 73.0 / 66.3 in) |
| Wheelbase | 2,690 mm (105.9 in) |
| Turning circle (kerb-to-kerb) | ~11.0 m (36.1 ft) |
| Kerb (curb) weight | ~1,610–1,670 kg (3,548–3,682 lb) depending on spec |
| Fuel tank | ~55 L (14.5 US gal / 12.1 UK gal) |
| Cargo volume | ~580 L (VDA) seats up; ~1,189 L seats down (method VDA) |
Performance and Capability
| Item | Data |
|---|---|
| 0–100 km/h (0–62 mph) | ~10.7 s (6MT) / ~11.0 s (CVT) |
| Top speed | ~190 km/h (118 mph) |
| Braking 100–0 km/h | — (depends on tire/trim; typical class result ~37–40 m) |
| Towing capacity (braked/unbraked) | Up to 1,500 kg (3,307 lb) braked / 750 kg (1,653 lb) unbraked (check VIN/market) |
| Payload | — (varies by market/trim; typically ~450–550 kg) |
| Roof load | ~75 kg (165 lb) incl. rack system (check crossbar rating) |
Fluids and Service Capacities
| System | Specification | Capacity (approx.) |
|---|---|---|
| Engine oil | Toyota-approved API SP; 0W-16 (preferred, many markets) or 0W-20 | ~4.3–4.6 L (4.5–4.9 US qt) with filter |
| Engine coolant | Toyota Super Long Life Coolant (pink), premix 50/50 | ~6–7 L (6.3–7.4 US qt) total system |
| CVT (K120) | Toyota CVT Fluid FE (consult label) | ~7–9 L (7.4–9.5 US qt) for drain-fill/complete service varies |
| Manual trans | API GL-4 spec (consult service manual) | ~2 L (2.1 US qt) |
| Rear differential | API GL-5 75W-85 | ~0.8–0.9 L (0.85–0.95 US qt) |
| Power Transfer Unit (PTU) | API GL-5 75W-85 | ~0.5–0.8 L (0.5–0.85 US qt) |
| A/C refrigerant | R-134a or R-1234yf (market dependent) | Charge mass per label (commonly ~500–600 g / 17.6–21.2 oz) |
| A/C compressor oil | ND-OIL 12 (for R-1234yf) or per label | ~100–130 mL (3.4–4.4 fl oz) |
| Key torque specs | Wheel nuts: 103 Nm (76 lb-ft); Drain/fill plugs: per casting (typ. 39–49 Nm) | — |
Always verify fluids and quantities by VIN and the under-hood label. Running changes and regional approvals apply.
Electrical
| Item | Data |
|---|---|
| Alternator | ~130–150 A (equipment dependent) |
| 12 V battery | ~60 Ah (form factor varies; start-stop not used on this petrol without MHEV) |
| Spark plugs | Iridium, long-life; gap ~0.7–0.8 mm (0.028–0.031 in) |
Safety and Driver Assistance
| Item | Data |
|---|---|
| Crash ratings (Euro NCAP) | 5 stars (RAV4 2019 protocol; adult/child/vulnerable road user strong results) |
| Headlights | Updated LED signatures post-facelift; performance depends on trim and AHB/Adaptive spec |
| ADAS suite | Toyota Safety Sense (market version) with Pre-Collision incl. pedestrian/cyclist detection, Emergency Steering Assist, Adaptive Cruise Control, Lane Departure Alert/Lane Tracing Assist, Road Sign Assist, Auto High Beam; Blind Spot Monitor/Rear Cross-Traffic Alert widely available |
Trims and Options, Safety and Driver Assistance
Trims and equipment (Europe-focused): Naming varies by country, but a typical ladder is Active / Icon / Mid / Style / Excel / GR SPORT. Petrol 2.0 AWD availability often starts mid-grade and extends to upper trims; entry models may be FWD only.
- Mechanical differences by trim
- AWD availability: mid-to-upper trims; manual AWD in select markets, CVT AWD more common.
- Wheels/tires: 17-inch on lower trims (comfort, winter traction), 18- or 19-inch on upper trims (firmer, better response).
- Brakes/suspension: Hardware is broadly shared; damping and steering tune can vary with wheel package.
- Towing: AWD petrol typically rated up to 1,500 kg braked; FWD petrol may be lower—verify the VIN and tow prep package (wiring/cooling).
- Key option packages and identifiers

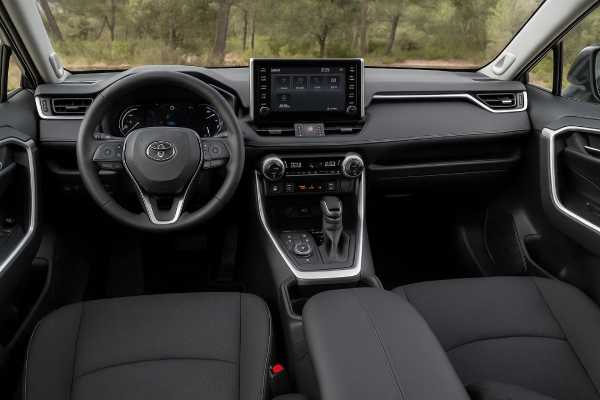

- Tech/Multimedia packs: 10.5-inch infotainment, 12.3-inch driver display, connected navigation, voice agent, wireless CarPlay (market-dependent) and wired Android Auto.
- Safety packs: 360° Panoramic View Monitor, Parking Support Brake, Rear Cross-Traffic Auto Brake.
- Exterior/interior tells: GR SPORT badges, piano-black or satin trim, specific 19-inch wheels, and sport seats quickly identify top trims.
- VIN/build codes: local distributors can decode drivetrain (AWD vs FWD), transmission, and emissions class from model code (e.g., AXAA54 series for 2.0 AWD).
- Year-to-year highlights (facelift era)
- 2022 (MY23 in many markets): new LED headlamp signatures and wheel designs; Toyota Safety Sense upgrades (pre-collision expansion, emergency steering assist); 10.5-inch centre display and 12.3-inch digital cluster on most non-base trims.
- 2023–present: incremental software features via “Toyota Smart Connect/Multimedia,” expanded connected services; GR SPORT widely added as a range-topper.
Safety ratings summary: The fifth-gen RAV4 achieved 5 stars under Euro NCAP (2019 protocol). The facelift kept the structure and restraint fundamentals while improving driver-assist coverage and camera/radar performance. Isofix/LATCH points are on the outer rear seats; top-tether anchors are easily accessed. Child-seat installs are straightforward thanks to wide door openings and largely flat seat bases. For recalibration after windscreen replacement or camera removal, plan for ADAS calibration at an equipped shop; many markets require a static/dynamic calibration procedure.
Headlamp notes: Trims with projector LEDs and adaptive functionality do a better job on unlit rural roads than base reflectors. If you drive in heavy rain or on unlit motorways, prioritise trims with adaptive high beam systems or add OEM-approved auxiliary lighting in markets where legal.
Reliability, Common Issues and Service Actions
The M20A-FKS RAV4 AWD has a strong reliability record. Most issues that surface are low-severity and addressable with normal maintenance. Below is a probability- and cost-weighted map drawn from field experience and service literature.
Engine and fueling (ICE specifics)
- Carbon accumulation (DI only) — uncommon here: The D-4S dual-injection strategy uses port injection to keep intake valves cleaner than pure-DI engines. Symptoms: rough idle after many short trips. Remedy: occasional highway runs, quality fuel; cleaning only if misfire counts persist. Prevalence: rare; cost: low.
- PCV and oil mist: High-compression engines can fog the intake under sustained high RPM. Symptoms: light oil film in intake tract. Remedy: stick to the correct low-volatility oil, normal change intervals; no catch-can unless jurisdictionally legal. Prevalence: occasional in harsh service; cost: low.
Cooling and fluids
- Extended coolant life: Toyota SLLC is long-life, but heavy mountain towing accelerates thermal aging. Remedy: conservative change at ~150,000 km/10 years initial then ~80,000–100,000 km/5 years. Cost: low.
Transmission and driveline
- CVT heat in alpine or towing use: The K120 CVT is robust if fluid stays healthy. Symptoms: protective RPM flares or reduced performance on long grades. Remedy: proactive CVT FE fluid drain-fills at 60,000–80,000 km in severe service (sooner after frequent towing). Prevalence: occasional with heavy loads; cost: medium.
- Rear differential/PTU seepage with age: Not widespread, but seals can sweat after many winters. Remedy: inspect at each service; replace seal, refresh 75W-85 GL-5. Prevalence: occasional; cost: medium.
- Wheel bearing noise: As on many crossovers, bearings may hum after high mileage or pothole impacts. Prevalence: occasional; cost: medium.
Chassis and body
- Front lower arm bushings & rear trailing-arm bushings: Gradual wear shows up as vagueness or knocks on sharp ridges. Remedy: replace bushings/arms; alignment. Prevalence: common at higher km; cost: medium.
- Underside corrosion points: Edge seams, rear subframe fasteners, and brake line clips in salted climates. Remedy: annual washdown and cavity wax where legal; treat early. Prevalence: climate-dependent; cost: low.
Electronics and ADAS
- Camera/radar alignment after windscreen work: Expect calibration; otherwise lane-keeping and pre-collision may throw warnings. Prevalence: inevitable after glass service; cost: low–medium.
- Infotainment quirks: Early 2023 software builds occasionally lagged; over-the-air updates improved responsiveness. Prevalence: occasional; cost: none.
Recalls and service actions (headline examples)
- Fuel pump (Denso) recall: Affected some earlier build years of fifth-gen RAV4 globally (mostly 2019–2020). While facelift 2022–present models are generally outside the core range, late registrations of older stock can appear in the used market. Always run an official VIN recall check before purchase.
- Dealer software updates: Periodic ECU/TCU and safety system calibrations address drivability or sensor edge cases; reflashes are the official remedy when prescribed.
Pre-purchase checklist (used examples)
- Full service history with oil/coolant/CVT fluid entries where applicable.
- VIN recall status printout and proof of any campaign work.
- AWD health check: listen for bearing hum, ensure rear axle engages on gravel; inspect PTU/rear diff for leaks.
- Underbody corrosion inspection; pay attention to rear subframe and brake lines.
- Tires and alignment: feathering or inner wear suggests overdue alignment or worn bushings.
Maintenance and Buyer’s Guide
Below is a practical, owner-first schedule tuned to the 2.0 AWD petrol. Always align with your service booklet and usage pattern; “time” limits are just as important as distance.
Core maintenance schedule
- Engine oil & filter: Every 10,000–15,000 km or 12 months (shorter if many short trips/cold starts). Use 0W-16 or 0W-20 meeting Toyota’s approvals.
- Engine air filter: Inspect 15,000 km / 12 months, replace 30,000–45,000 km (dusty regions sooner).
- Cabin filter: 12 months (pollen/activated carbon variants improve winter defogging).
- Spark plugs (iridium): Typically 150,000–180,000 km; inspect earlier if misfire counts appear.
- Coolant (SLLC): First at 150,000 km/10 years, then 80,000–100,000 km/5 years.
- CVT fluid (K120): Normal mixed use: 120,000 km inspection and change if dark/oxidised; 60,000–80,000 km for frequent towing or mountain use.
- Manual trans oil: 120,000 km check/change; sooner for severe duty.
- Rear diff & PTU oil: Inspect 60,000 km; change 90,000–120,000 km or sooner if towing.
- Brake fluid: 24 months regardless of mileage.
- Brake pads/rotors: Inspect every service; winter salt accelerates rear rotor rust-lip.
- Serpentine belts & hoses: Inspect annually after 90,000 km.
- Alignment & tire rotation: Rotate 10,000–15,000 km; align yearly or after pothole hits; keep even wear on AWD.
- 12 V battery: Test annually after year 3; typical life 4–6 years depending on climate.
Fluid quick list (owner decision-making)
- Oil: 0W-16/0W-20 API SP, ILSAC GF-6 (Toyota branded or equivalent).
- CVT: Toyota CVT FE only; do not mix.
- Diff/PTU: GL-5 75W-85 (Toyota or equivalent).
- Coolant: Toyota SLLC (pink premix).
- A/C refrigerant: R-134a or R-1234yf as labelled; use ND-OIL per refrigerant type.
Essential torques (typical)
- Wheel nuts: 103 Nm (76 lb-ft).
- Drain/fill plugs (diff/PTU/CVT): 39–49 Nm unless otherwise specified; confirm by component casting and manual.
Buyer’s guide: what to look for
- Best years/trims to target: 2023–present for the updated screens and enhanced Toyota Safety Sense; mid trims with 18-inch wheels balance ride and grip. GR SPORT brings style but firmer ride.
- Towing and winters: Choose AWD with factory tow prep in markets where offered; seek trims with heated windshield/steering wheel and adaptive LED lights if you drive at night in rural areas.
- Avoid? Not a “bad year,” but if you value ride comfort on rough roads, skip the largest 19-inch packages and prioritise 17–18-inch tires.
- Long-term outlook: The Dynamic Force 2.0, simple AWD, and broadly shared Toyota component set point to excellent 10-year durability with routine fluid care. Expect consumables and suspension bushings around the 120,000–160,000 km window.
Driving and Performance
Ride, handling, NVH: The TNGA-K platform gives the RAV4 a planted stance. With 18-inch wheels, it strikes a sweet spot: calm body control, stable highway tracking, and enough sidewall to shrug off broken surfaces. Steering is light at parking speeds and gains reassuring weight as you build speed; feedback is muted (class-typical) but responses are natural. Wind noise is well controlled after the facelift; road roar depends on tire brand and rim size—19-inch setups are louder on coarse asphalt.
Powertrain character: The M20A-FKS is tuned for efficiency. It is smooth and willing to rev, with best pull from 3,500–5,500 rpm. The 6-speed iMT manual blips on downshifts and is cleanly geared for mixed driving. The Direct-Shift CVT uses a real launch gear, so initial step-off feels more conventional; under heavy throttle you will still hear sustained revs, but part-throttle behavior is unobtrusive. In daily use, the CVT keeps the engine in its efficient window and helps deliver those 7-something L/100 km results.
AWD behavior and traction: The on-demand AWD reacts quickly to front slip and proactively biases torque rearward in off-the-line situations when a terrain mode is selected. Snow mode softens throttle and keeps torque modest to avoid wheelspin, handy on polished urban snow. Mud & Sand allows more wheelspin and keeps momentum; Rock & Dirt coordinates brakes to mimic limited-slip across the axle. With all-season tires it is secure; with quality winter tires it is impressively sure-footed. Stability control is tuned conservatively but allows modest slip on loose surfaces.
Measured performance: Expect ~10.7–11.0 s to 100 km/h depending on transmission/wheels and ~190 km/h top speed. Passing performance (80–120 km/h) is adequate if you plan a downshift (manual) or deeper throttle (CVT). Braking feel is consistent; pads are civil-grade compounds that balance dust and bite.
Efficiency in the real world:
- City: 8.0–9.0 L/100 km (29–26 mpg US) with gentle driving; short winter hops add +1.0–1.5 L/100 km.
- Highway 100–120 km/h: 6.9–8.4 L/100 km (34–28 mpg US) depending on wind, roof box, and wheels.
- Mixed: Landing in the 7.3–7.9 L/100 km band is typical if you avoid roof loads and oversized winter tires.
Load and towing: With a braked rating up to 1,500 kg, the RAV4 tows small campers or utility trailers well. Use a conservative throttle on long grades to manage CVT temperatures; downshift (manual) or use “S” steps (CVT) to keep RPM in the efficient torque band. Expect a +25–35% consumption penalty when towing at motorway speeds. The chassis remains stable provided the tongue weight and trailer loading are correct; fit trailer brakes and stay within local legal limits.
How RAV4 AWD Compares to Rivals
Versus Honda CR-V 1.5T AWD: The CR-V’s turbo engine offers more low-rpm torque and slightly stronger rolling response. The RAV4 counters with simpler naturally aspirated hardware, typically lower maintenance risk over long ownership, and an infotainment stack that improved notably post-facelift. If you value extra midrange punch, the Honda edges it; if you prize predictable upkeep and residuals, the Toyota is the safer bet.
Versus Nissan X-Trail/Qashqai+2 (2.0/1.5 VC-Turbo) AWD: Nissan’s newer infotainment and available e-POWER hybrid systems are compelling. However, Toyota’s build consistency and parts commonality result in excellent long-term parts availability and pricing. The RAV4’s cabin is also roomier in the rear and boot in many configurations.
Versus Hyundai Tucson/Kia Sportage (2.0/1.6T AWD): The Koreans lead in warranty length and perceived tech value (digital dash variety, heated everything). The RAV4 offers more conservative calibration, a quieter durability story for the naturally aspirated engine, and strong resale. Ride comfort is comparable on 18-inch wheels; 19-inch wheels on any of these crossovers stiffen impacts.
Versus RAV4 Hybrid AWD-i: If you drive mostly urban and want maximum economy, the Hybrid AWD-i is meaningfully more efficient. The 2.0 petrol AWD wins if you prefer simpler mechanics, lower hybrid-system complexity, and often a lower buy-in on the used market.
