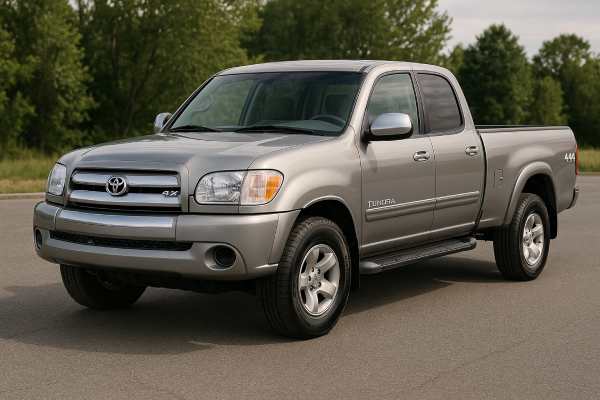

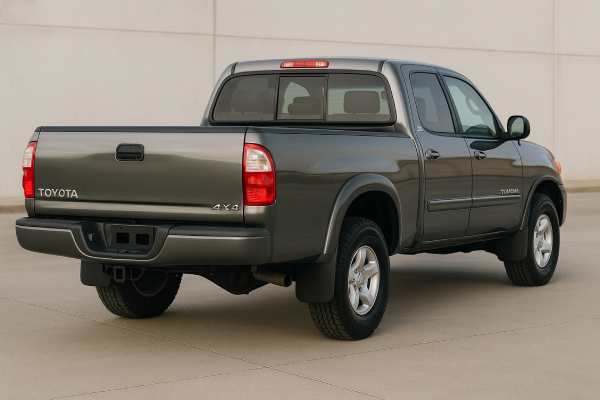

The 2004–2005 Toyota Tundra 4×4 (XK40) with the 2UZ-FE 4.7 litre V8 is the version many owners picture when they think of a “forever truck.” It combines a stout cast-iron V8, a simple part-time four-wheel-drive system and a mid-size footprint that feels manageable compared with newer full-size pickups. In the facelift years, the V8 gained VVT-i and was rated at 282 hp and 325 lb-ft, paired to a 5-speed automatic and available in Access Cab and Double Cab configurations.
For buyers today, the appeal is clear: a truck that can tow around 6,500–7,100 lb, tackle winter and light off-road work, and still be serviced by any competent independent shop. The trade-offs are age-related issues such as frame corrosion, ball-joint recalls, and safety tech that reflects the early 2000s, not the 2020s. This guide walks through what the XK40 4×4 does well, where it needs attention and how to choose and maintain one wisely.
Owner Snapshot
- 2UZ-FE 4.7 V8 with VVT-i and 5-speed automatic is widely regarded as a 300,000+ mile powertrain when maintained.
- Part-time 4×4 with low range, good ground clearance and robust differentials makes this Tundra a capable winter and light trail truck.
- Main watch points are frame rust, front lower ball joints and age-related suspension and brake-line corrosion.
- Expect real-world fuel economy around 13–15 mpg US (18–21 L/100 km) mixed driving on stock tyres.
- Plan on timing belt and water pump replacement roughly every 90,000 miles / 145,000 km or 6–9 years.
What’s inside
- Toyota Tundra XK40 4×4 basics
- Toyota Tundra XK40 specs guide
- Tundra 4×4 trims and safety
- Reliability and known problem areas
- Maintenance advice and buying guide
- Driving feel and real-world performance
- How Tundra 4×4 stacks up
Toyota Tundra XK40 4×4 basics
The XK40 designation covers the four-wheel-drive versions of the first-generation Toyota Tundra sold from 2000–2006. For 2004–2005, the truck received a mild exterior and interior facelift and, more importantly, a significant powertrain update: the 4.7 litre 2UZ-FE V8 gained VVT-i, lifting output to about 282 hp and 325 lb-ft in North American trim. That engine was paired exclusively with a 5-speed A750F automatic on most 4×4 V8 models, driving through a two-speed transfer case and separate front and rear differentials.
In real life, the 4×4 XK40 feels like a “three-quarter scale” version of the later second-generation Tundra. It is narrower and a bit shorter than many domestic half-tons from the same era, which makes it easier to manoeuvre in tight city streets and older garages, yet the cabin—especially in Double Cab form—still provides genuine five-passenger space. The Access Cab offers rear-hinged half doors and jump seats, while the Double Cab brings full-size rear doors and a more family-friendly rear bench.
The four-wheel-drive system is a straightforward part-time design with a 2H/4H/4L transfer case. On most trucks you drive in 2H on dry pavement and select 4H or 4L for slippery or off-road conditions. This simplicity is part of the appeal: fewer clutches and electronics than some modern “on-demand” systems, and easy diagnosis if something does go wrong. The front suspension uses double wishbones with coil-over shocks, while the rear relies on a solid axle with leaf springs. Ground clearance is generous, and approach and departure angles are respectable for a stock pickup.
From an ownership point of view, the XK40 4×4 brings several clear strengths:
- A long-lived, under-stressed V8 built on a cast-iron block.
- A well-proven 4×4 system shared with other Toyota trucks and SUVs of the era.
- Straightforward access to most service items, especially in the engine bay and underbody.
Its main weaknesses are not mechanical design flaws so much as time and climate. Two decades of winters, road salt and neglected maintenance will expose frame corrosion, suspension fatigue and brake-line rust. The trucks that stand out today are those with documented rust treatment, timely timing-belt changes and a history of careful use rather than heavy plowing or max-capacity towing.
Toyota Tundra XK40 specs guide
This section focuses on typical specifications for a 2004–2005 Toyota Tundra 4×4 V8 (XK40), especially an Access Cab or Double Cab with the 2UZ-FE 4.7 V8 and 5-speed automatic. Exact figures vary slightly by body style, axle ratio and equipment, so always confirm against the VIN and local documentation.
Engine and performance (2UZ-FE VVT-i)
| Item | Detail |
|---|---|
| Engine code | 2UZ-FE VVT-i “i-Force” |
| Layout and cylinders | 90° V8, DOHC, 32 valves, 4 valves per cylinder |
| Block / head | Cast-iron block, aluminium cylinder heads |
| Displacement | 4.7 L (4,663 cc) |
| Bore × stroke | 94.0 × 84.0 mm (3.70 × 3.31 in) |
| Induction | Naturally aspirated |
| Fuel system | Sequential multi-port fuel injection |
| Compression ratio | Around 10.0:1 on VVT-i versions |
| Max power | Approx. 282 hp (210 kW) @ 5,400 rpm |
| Max torque | Approx. 325 lb-ft (441 Nm) @ 3,400 rpm |
| Firing order | 1–8–4–3–6–5–7–2 |
| Timing drive | Belt to intake cams, gears/chains to exhaust cams |
| Recommended fuel | Regular unleaded (typically 87 AKI in North America) |
| Rated economy | Around 13 city / 17 highway / 15 combined mpg US for 4×4 V8 |
| Approx. metric economy | ≈18.1 / 13.8 / 15.7 L/100 km city / highway / combined (derived) |
| Real-world highway @ 120 km/h | Often 15–17 mpg US (14–16 L/100 km), depending on tyres and load |
Transmission and driveline
| Item | Detail |
|---|---|
| Transmission | 5-speed automatic, A750F |
| Gear ratios | 1st 3.52; 2nd 2.04; 3rd 1.40; 4th 1.00; 5th 0.72; Rev 3.22 (typical A750F values) |
| Transfer case | Two-speed, part-time 4×4 with 2H / 4H / 4L |
| Drive type | 4×4 with separate front and rear differentials |
| Final drive ratios | Commonly in the mid-3.9:1 range; some towing packages use shorter gearing |
| Front differential | Hypoid gearset, independent from transfer case |
| Rear differential | Solid axle; open or limited-slip depending on trim and market |
Chassis and dimensions (typical 4×4 Access / Double Cab)
| Item | Detail |
|---|---|
| Front suspension | Double wishbone, coil-over shocks, anti-roll bar |
| Rear suspension | Leaf springs with solid rear axle |
| Steering | Rack-and-pinion power steering |
| Brakes | Front ventilated discs; rear drums on most trims |
| Wheels/tyres | 16–17 in wheels; common tyre sizes around 265/70 R16 or similar all-terrains |
| Ground clearance | Roughly 10 in (≈250–260 mm) |
| Length | Around 5,545–5,845 mm (218–230 in), depending on cab and bed |
| Width | About 1,945–2,015 mm (77–79 in) |
| Height | Around 1,820 mm (≈72 in) |
| Wheelbase | Approx. 3,260 mm (128.3 in) on Access Cab; slightly longer on Double Cab |
| Turning circle | Around 13 m (≈42–43 ft) kerb-to-kerb |
| Curb weight | Roughly 4,500–5,050 lb (2,040–2,290 kg) depending on configuration |
| GVWR | Around 6,600 lb (≈2,990 kg) on many 4×4 V8 trucks |
| Fuel tank | Approximately 100 L (about 26 US gal) |
| Angles | Approach and departure angles suited to light off-road use; exact values vary with bumper and tyre choice |
Performance and capability
| Item | Detail |
|---|---|
| 0–60 mph (0–96 km/h) | Typically around 7.8–8.5 s for 4×4 V8 trucks |
| Top speed | Often limited to around 110–115 mph (177–185 km/h) |
| Towing capacity | Around 6,500–7,100 lb (2,950–3,220 kg) when properly equipped |
| Payload | Typically 1,500–1,900 lb (680–860 kg) depending on cab and options |
| Roof load | Commonly around 100–150 lb for OEM rack systems |
Fluids and service capacities (typical values)
These values are approximate and can vary with exact model year and equipment.
| System | Spec and capacity (approximate) |
|---|---|
| Engine oil | 5W-30, around 6.2–6.6 L (6.5–7.0 US qt) with filter |
| Engine coolant | Around 11.6–12.8 L total capacity for 2UZ-FE 4×4 systems |
| Automatic transmission | Drain-and-fill around 3.0–3.2 L (about 3.0–3.2 US qt); full capacity higher |
| Transfer case | Roughly 1.0 L of 75W-90 gear oil |
| Front differential | Around 1.1–1.2 L of GL-5 80W-90 |
| Rear differential | Around 3.5 L of GL-5 80W-90 on 4×4 models |
| A/C refrigerant | R-134a; specific charge on under-hood label |
| Oil drain plug torque | About 29 ft-lb (≈39 Nm) |
| Wheel lug nut torque | Commonly around 83 ft-lb (≈112 Nm), verify per manual |
Electrical
| Item | Detail |
|---|---|
| Alternator | Roughly 100–130 A depending on trim and equipment |
| 12 V battery | Typical group 24/27 with 550–700 CCA range |
| Spark plugs | Iridium plugs with around 1.1 mm (0.043 in) gap |
Safety and driver assistance snapshot
| Item | Detail |
|---|---|
| Crash ratings | Good frontal offset rating for extended/Access Cab models in major tests for this generation |
| Airbags | Dual front airbags standard; side and curtain airbags available on many later facelift trucks |
| ABS | Four-wheel ABS on most 4×4 trims |
| Stability systems | TRAC and VSC available or standard on many V8 4×4 trucks from this era |
| ADAS features | No automatic emergency braking, lane-keeping, blind-spot monitoring or modern camera suites |
Tundra 4×4 trims and safety
The 4×4 XK40 Tundra was offered in several trim levels during the 2004–2005 facelift years, with combinations of Access Cab and Double Cab bodies. Understanding how these trims differ mechanically and in safety equipment helps you target the right truck.
Trim and equipment overview
Common 4×4 trims include:
- SR5 4×4 – The workhorse specification. Cloth seats, power windows and locks, basic audio, and alloy or steel wheels depending on package. Available in Access Cab and Double Cab.
- Limited 4×4 – More premium features: leather upholstery on many trucks, upgraded audio (often JBL), power driver’s seat, body-colour flares and more chrome. Typically paired with alloy wheels and more comfort features.
Within these trims, key option packages affect mechanical hardware:
- Tow package – Frequently adds a transmission cooler, heavy-duty alternator, shorter final-drive ratio and wiring provision for a trailer brake controller, along with a Class III/IV hitch.
- Off-road or TRD-style packages (where offered) – May upgrade shocks, tyres and skid plates. The first-gen Tundra’s factory off-road content is modest compared with later TRD Pro models, but skid plates and all-terrain tyres still add real utility.
Wheel and tyre combinations matter for both ride and capability. Base 16-inch wheels with taller sidewalls ride more comfortably and work better in deep snow or rough tracks. Larger wheels with lower-profile tyres sharpen steering but can make the truck feel busier on broken pavement.
Safety ratings and equipment evolution
Crash-test ratings for 2004–2005 Tundras show solid frontal performance for Access/extended-cab trucks, with good overall ratings in moderate-overlap frontal testing. Side-impact and rollover ratings are more sensitive to cab style, curb weight and airbag fitment. Trucks equipped with optional side torso and curtain airbags provide a meaningful additional safety margin for occupants in certain crashes.
By modern standards, active safety equipment is basic:
- Four-wheel ABS is standard on most 4×4 models.
- Traction control (TRAC) and Vehicle Stability Control (VSC) become more common on V8 4×4 trims toward the later years, often bundled with higher trims or specific option groups.
- There is no factory automatic emergency braking, forward collision warning or lane-keeping system. Parking sensors and rear cameras, where present, are often dealer or aftermarket add-ons.
For families or daily use, Double Cab 4×4 trucks with side and curtain airbags, ABS and VSC are the safest and most versatile option. They offer easier child-seat access, more predictable crash performance and better daily usability than a basic Access Cab. Fleet or work-focused buyers may prefer a simpler SR5 4×4 Access Cab with cloth interior and fewer electronics, provided it has a solid frame and up-to-date recall status.
When evaluating any candidate truck, treat the presence of stability control and side/curtain airbags as a bonus, not a given. Many early facelift trucks were sold without them, and the only reliable way to confirm is by checking build information, airbag labels and, ideally, the original window sticker or dealer data.
Reliability and known problem areas
The 2UZ-FE V8 and associated 4×4 driveline in the XK40 Tundra have a well-earned reputation for longevity. Many trucks reach and exceed 300,000 miles with only routine service. Most “problems” you will encounter today are a combination of age, environment and deferred maintenance rather than fundamental design defects. That said, there are several pattern issues and safety campaigns you should understand.
Frame corrosion (common in salt regions, high severity)
First-generation Tundras are known for frame rust, especially in areas with heavy road-salt use. Corrosion starts on frame rails, crossmembers, leaf-spring mounts and around the spare tyre winch. Light surface rust is expected; heavy scaling, flaking and any perforation are serious. Toyota has conducted frame inspection and treatment programs in certain markets and years, including frame replacement where severe rust is documented. On a used truck, evidence of a factory frame replacement is a strong positive, provided the work was done correctly. If the frame is original, inspect it on a lift with a flashlight and pick; if you can push a screwdriver through, walk away.
Front lower ball joint recall (common, potentially catastrophic)
Certain 2004–2006 Tundra models, including many XK40 4×4 trucks, were subject to a safety recall for front lower ball joints. Premature wear from lubrication issues could lead to excessive play, noise, vague steering and, in extreme cases, ball-joint separation. Symptoms include clunking over bumps, wandering steering and uneven tyre wear. The recall remedy is replacement with revised ball joints. Because the consequences of failure are severe, you should always verify recall completion through an official VIN recall lookup or dealer service department and still have the joints checked for play during inspection.
Brake and fuel line corrosion (occasional, medium severity)
In the same climates that attack frames, steel brake and fuel lines can rust through, potentially leading to fluid leaks, loss of braking force or fuel odours. Replacement involves labour to re-run and secure new lines along the frame rails. Many trucks have had sections replaced piecemeal; a clean, properly routed set of replacement lines is preferable to a patchwork of old and new.
Exhaust manifold leaks (occasional, medium cost)
The 2UZ-FE V8 can develop cracks or gasket leaks at the exhaust manifolds after years of heat cycling. Owners typically notice a ticking sound on cold start that quiets as the metal expands. While not immediately dangerous, prolonged exhaust leaks can affect emissions and inspection results, and they gradually worsen. Fixes range from replacing with OEM-style manifolds to installing aftermarket headers where emissions rules allow.
Suspension and steering wear (common, low–medium cost)
On high-mileage 4×4 trucks, expect wear in:
- Front lower and upper ball joints (even post-recall).
- Inner and outer tie rods.
- Control-arm and leaf-spring bushings.
- Shocks/struts and rear leaf packs.
Symptoms include looseness in the steering, clunks over bumps and uneven tyre wear. A full suspension refresh, though not cheap, can make an older Tundra feel unexpectedly tight and modern again.
Powertrain durability patterns
The 2UZ-FE VVT-i itself is generally robust, with few systemic issues:
- Timing-belt failures are rare if the belt is changed on schedule.
- Minor oil leaks from valve-cover gaskets and front seals are common but manageable.
- Cooling system components age out; radiators, hoses and water pumps often need replacement around timing-belt interval or earlier in severe service.
- The A750F automatic is durable if fluid is kept relatively fresh and the truck is not constantly overloaded or overheated.
Driveline components—transfer case and differentials—are also sturdy, provided their fluids are changed periodically and the truck is not abused with shock loads from aggressive off-roading or clutchless shifting into 4L.
Recalls and service actions to check
Beyond the ball-joint and frame-related campaigns, ask about:
- Airbag recalls (if any apply in your market).
- Corrosion or underbody treatment campaigns.
- Any extended warranties on rust, suspension or steering components.
A good pre-purchase process includes:
- Running the VIN through an official recall-lookup site.
- Asking the seller for dealer print-outs showing completed campaigns.
- Having a qualified shop inspect the truck on a lift for rust, leaks, play in steering/suspension and signs of off-road abuse.
Maintenance advice and buying guide
Treating the Tundra XK40 4×4 as a long-term asset means building a realistic maintenance plan that fits the age of the truck. Below is a practical schedule; always compare against your market’s official maintenance chart, especially for severe-service conditions such as frequent towing, short trips or dusty environments.
Practical maintenance schedule (approximate)
| Item | Interval (distance / time) | Notes |
|---|---|---|
| Engine oil and filter | 5,000–7,500 mi (8,000–12,000 km) or 6–12 months | Use quality 5W-30 oil meeting current specification; shorter intervals for towing or many cold starts. |
| Engine air filter | Inspect annually; replace 30,000–40,000 mi (50–65k km) | Replace sooner in dusty or off-road use. |
| Cabin air filter | 15,000–20,000 mi (24–32k km) or every 2 years | Some early trucks may require a retrofit or careful access. |
| Spark plugs | 90,000–120,000 mi (145–190k km) | Use long-life iridium plugs; replace early if misfires or poor economy appear. |
| Fuel filter | Often integral with pump; inspect/replace as needed | Check parts data for your exact VIN. |
| Timing belt and water pump | 90,000 mi (145k km) or 6–9 years | Replace belt, tensioner, idlers, water pump, accessory belts and, if necessary, cam and crank seals. |
| Coolant | 100,000 mi (160k km) initial, then every 50–60k mi (80–100k km) or 5 years | Use Toyota Long Life or Super Long Life coolant or equivalent. |
| Automatic transmission fluid | 60,000–90,000 mi (95–145k km) | Drain-and-fill is preferred over aggressive flushing on high-mileage units. |
| Transfer case and diffs | 30,000–60,000 mi (50–95k km) | Use specified GL-4/GL-5 gear oil; shorter intervals for frequent 4×4 use. |
| Brake fluid | Every 2–3 years | Full flush to reduce internal corrosion and maintain pedal feel. |
| Brake pads/rotors | Inspect every 10,000–15,000 mi (16–24k km) | Pay attention to rust on backing plates and caliper slides. |
| Power-steering fluid | Inspect annually; refresh around 60,000–90,000 mi | Gradual exchange helps reduce steering rack wear. |
| Tyre rotation and balance | Every 5,000–7,500 mi (aligned with oil changes) | Essential on a 4×4 to keep wear even and reduce road noise. |
| 12 V battery | Test annually after 4–5 years; replace around 6–7 years | Weak batteries can cause ABS/VSC and 4×4 warning lights. |
Fluid choices are central to longevity: use correct API/ILSAC engine oil spec, GL-5 gear oils of appropriate viscosity, and OEM-style coolant and ATF. When in doubt, consult the official owner’s manual or a trusted Toyota specialist.
Essential torque and spec reminders
- Engine oil drain plug: around 29 ft-lb (≈39 Nm).
- Wheel lug nuts: often around 83 ft-lb (≈112 Nm).
- Always confirm exact values for your year and wheel type before tightening.
Buying guide: what to look for
When shopping for a 2004–2005 Tundra 4×4 XK40, consider the following checklist:
Structural and rust
- Inspect the entire frame, especially near the rear leaf-spring mounts, fuel-tank straps, crossmembers and steering gear.
- Check bed mounts, cab mounts, and inner rocker panels for rust.
- Surface rust is common; deep scaling, flaking and holes are high-risk.
Suspension, steering and driveline
- Check for play in lower and upper ball joints, tie rods and steering rack.
- Listen for clunks from the front and rear over bumps.
- Drive in 2H and then engage 4H on a loose surface; verify that the transfer case engages smoothly and that no grinding or binding occurs.
- Engage 4L (with truck stopped and in neutral or park as per manual) to ensure low range works and does not jump out of gear.
Powertrain
- Look for oil seepage at valve covers, front crank seal and rear main area.
- Check coolant colour and level; inspect radiator and hoses for crusty deposits.
- Ask for proof of timing-belt and water-pump replacement; if none exists and mileage is high, budget for the job immediately after purchase.
Electrics and interior
- Confirm that ABS, TRAC, VSC and 4×4 indicator lights cycle correctly at start-up and stay off while driving.
- Check that HVAC modes, blower speeds and heater core function properly.
- Test power windows, locks, seat adjustments and any sunroof or rear window mechanisms.
Best configurations to target
- For general use and light towing: an SR5 or Limited Double Cab 4×4 with the 4.7 V8, tow package, side/curtain airbags and stability control, if available.
- For mixed work and off-road: an Access Cab 4×4 V8 with tow package, skid plates and all-terrain tyres, ideally with relatively low rust and a documented maintenance history.
Avoid trucks with severe frame rust, incomplete critical recalls or unclear timing-belt history unless they are priced appropriately and you are prepared to invest heavily in refurbishment.
Driving feel and real-world performance
On the road, the 2004–2005 Tundra 4×4 XK40 feels solid, predictable and more refined than many domestic rivals of its era, while still clearly a body-on-frame pickup. The 2UZ-FE V8 dominates the experience with its smoothness and relaxed character.
Powertrain character
The VVT-i 4.7 V8 delivers strong mid-range torque rather than a high-revving rush. Around town, it pulls cleanly from low rpm and rarely needs to rev beyond 3,000 rpm in normal driving. The 5-speed automatic helps keep the engine in its sweet spot, using the lower gears for response and a tall fifth gear for fuel economy on the highway. Kickdown from 60 to 80 mph (about 100–130 km/h) is decisive, making highway passing easy even on grades.
Throttle response is linear and predictable. There is no turbo lag because the engine is naturally aspirated, and the drive-by-wire throttle mapping is conservative rather than aggressive. In low range, the combination of gearing and V8 torque makes slow off-road manoeuvres controlled and confidence-inspiring, especially when creeping over rocks or through deep snow.
Ride, handling and NVH
The XK40 4×4 rides like a truck, but a well-sorted example is composed and controlled rather than punishing. The front double-wishbone suspension gives better steering precision than many torsion-bar setups from the same era, and the rear leaf springs carry loads without excessive sagging. With an empty bed, you will feel sharp bumps and expansion joints; adding a few hundred pounds of cargo smooths things out noticeably.
Noise levels are reasonable for an early-2000s pickup. The V8 is quiet at cruise with a muted growl under throttle, wind noise is moderate and tyre noise depends heavily on the tyre type. All-terrain tyres add some hum compared with highway treads, especially on concrete surfaces.
Braking and control
The Tundra’s front-disc/rear-drum braking system is adequate for its size and era but not outstanding. Pedal feel is good when the system is healthy; corrosion on backing plates, seized slide pins and old fluid can degrade performance. ABS intervention is relatively gentle on dry pavement but more noticeable off-road or on loose surfaces.
Trucks equipped with stability control (VSC) and traction control (TRAC) benefit from an extra safety net on wet or icy roads. The systems can cut engine power and pulse brakes to correct a slide, though they are not as seamless as modern setups. In deep snow or sand, drivers sometimes prefer to reduce the system’s sensitivity to maintain momentum.
Fuel economy and towing feel
Real-world fuel economy for a 4×4 4.7 V8 Tundra typically falls into:
- Around 13–14 mpg US (18–20 L/100 km) in city driving.
- Roughly 15–17 mpg US (14–16 L/100 km) on the highway at 100–120 km/h, with stock tyres and moderate loading.
- Around 15 mpg US (15.7 L/100 km) in mixed use for many owners.
With a medium trailer in the 4,000–5,000 lb range, expect consumption to worsen by 25–40%, depending on terrain and speed. Near the rated 6,500–7,100 lb towing limit, the engine can still hold highway speeds but will shift more often and consume fuel more rapidly.
Under load, the Tundra feels stable, especially in Double Cab form with the longer wheelbase. Proper hitch setup, trailer brakes and conservative downhill speeds are crucial. The cooling system, when maintained, copes well with moderate towing; if you tow frequently in mountainous areas, keeping coolant, ATF and diff fluids fresh becomes even more important.
How Tundra 4×4 stacks up
When the 2004–2005 Tundra 4×4 was new, it competed directly with trucks like the Ford F-150 4×4, Chevrolet Silverado 1500 4×4, GMC Sierra 1500 4×4, Dodge Ram 1500 4×4 and Nissan Titan. On today’s used market, buyers still compare it to those same models from the mid-2000s.
Key advantages versus rivals
- Powertrain reliability – The 2UZ-FE V8 and A750F automatic are widely viewed as among the most durable engine/transmission combinations in the segment. Some rival V8s from the same era suffer from known issues like spark-plug thread problems, timing-chain tensioner failures or transmission weaknesses.
- Refinement – The Tundra’s V8 is exceptionally smooth and quiet, and the 5-speed automatic offers better gearing spread than older 4-speed units used by some competitors at the time.
- Manageable size – The first-generation Tundra is slightly smaller than many contemporary American full-size pickups, which makes it easier to park and thread through narrow streets while still offering serious towing and payload capabilities.
Areas where rivals may lead
- Maximum towing and payload – Some F-150, Silverado/Sierra and Ram configurations of this era offer higher rated tow and payload numbers, especially in heavy-duty or high-axle-ratio trims. If you routinely operate near 8,000–10,000 lb trailer weights, a three-quarter-ton or later half-ton truck may serve you better.
- Cab size and features – Certain rivals offer larger crew cabs with more rear-seat legroom, plus available features such as integrated trailer brake controllers, power-adjustable pedals or more advanced audio/navigation options.
- Aftermarket ecosystem – While there is solid aftermarket support for the Tundra, the F-150 and Silverado platforms still have broader availability of performance and work-truck parts, especially suspension kits and speciality accessories.
Rust, recalls and ownership realities
All trucks from this era can rust, but the Tundra’s high-profile frame rust issues and lower ball-joint recalls demand more careful verification. The upside is that Toyota’s recall campaigns and underbody treatment efforts give you clear documentation to seek out. Some domestic trucks of the time suffer from less publicised but equally serious corrosion or powertrain issues, so comparing individual trucks—not just nameplates—is crucial.
For many buyers, the XK40 Tundra 4×4 hits a sweet spot: strong reliability record, honest work-truck capability, relatively comfortable manners and a simpler electronic environment than modern trucks. If you choose a structurally sound example with documented maintenance and recall completion, you can reasonably expect many more years of dependable service, whether you use it for towing, home projects, weekend adventures or a mix of all three.
References
- 2005 Toyota Tundra 2005 (Safety Rating)
- Used 2005 Toyota Tundra – Specs & Features 2005 (Specifications Overview)
- Fluids & capacities – Tundra (1999-2006) 2019 (Fluids & Capacities)
- TOYOTA CUSTOMER SERVICES 2007 (Safety Recall – Front Suspension Lower Ball Joint)
Disclaimer
This article is for informational purposes only and is not a substitute for professional diagnosis, repair or official service information. Specifications, torque values, maintenance intervals and repair procedures can vary by VIN, model year, market and installed equipment. Always consult your vehicle’s official owner’s manual, service manual and current technical bulletins, and follow local safety regulations and best practices when inspecting, servicing or modifying your vehicle.
If you found this guide helpful, you are welcome to share it with other owners or enthusiasts on platforms such as Facebook or X/Twitter to support xcar’s work and help keep more of these trucks safely on the road.
