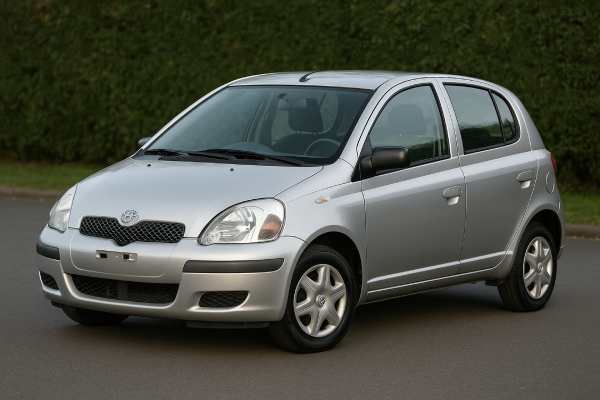

The first-generation Toyota Yaris NCP10 with the 2NZ-FE 1.3 litre engine sits in the sweet spot between the basic 1.0 and more powerful variants. It was designed as a city-friendly hatchback that could still cope with long motorway trips, with a tall body, sliding rear bench, and a cleverly packaged cabin that feels bigger than the footprint suggests.
The 2NZ-FE aluminium four-cylinder is chain-driven, uses VVT-i on the intake cam, and is known for starting easily and tolerating hard daily use if serviced on time. Combined with modest weight and simple suspension, the Yaris NCP10 offers low fuel consumption, light controls, and very low running costs. At the same time, its age now means rust, perished bushes, and deferred maintenance can make or break a used example.
This guide walks through specs, real-world performance, reliability patterns, maintenance planning, and how the NCP10 stacks up against its rivals so you can buy, own, or maintain one with confidence.
Core Points
- Compact footprint but very roomy cabin with sliding rear bench and good visibility.
- 2NZ-FE 1.3 engine is chain-driven, efficient, and long-lived when oil is changed on time with the correct 5W-30 spec.
- Typical weak spots are suspension bushes, rust on the rear underbody, and ageing sensors or coil packs rather than major engine failures.
- Expect roughly 6.0–6.5 L/100 km in mixed driving with a healthy car on appropriate tyres.
- Sensible baseline service: engine oil and filter every 10,000–15,000 km or 12 months, whichever comes first.
What’s inside
- NCP10 Yaris 1.3 Profile
- 2NZ-FE Specs and Data
- Yaris NCP10 Grades and Safety
- Ownership Reliability and Known Issues
- Maintenance Planning and Buying Guide
- On-Road Performance and Comfort
- How the NCP10 Compares
NCP10 Yaris 1.3 Profile

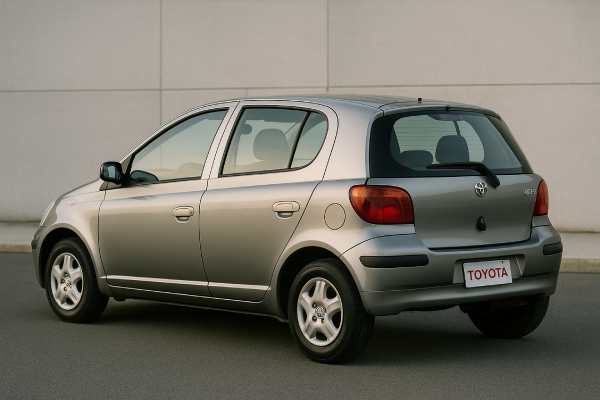

The NCP10 code refers to the first-generation Yaris (XP10 platform) fitted with the 2NZ-FE 1.3 litre petrol engine and front-wheel drive. Sold mainly between late 1999 and 2003 in Europe and many export markets, it was the step-up engine over the 1.0, aimed at drivers who wanted a little more performance without losing the Yaris’s low running costs.
Despite being just over 3.6 metres long, the car sits quite tall, which gives a more upright seating position and generous headroom for adults in both rows. The rear bench slides and folds, so you can trade rear legroom for boot space and vice versa. With the bench in its rearmost position, there is enough legroom for two adults; pushed forward and folded, the quoted cargo volume rises to roughly 950 litres by the VDA measurement method.
In most markets the NCP10 1.3 was offered with a five-speed manual gearbox, while a four-speed torque-converter automatic was optional. Both transmissions are simple and well proven, using conventional clutches or bands without dual-clutch complexity. The manual suits the 1.3 engine best – ratios are short enough that the car feels lively in town, yet it will still cruise at motorway speeds without excessive strain.

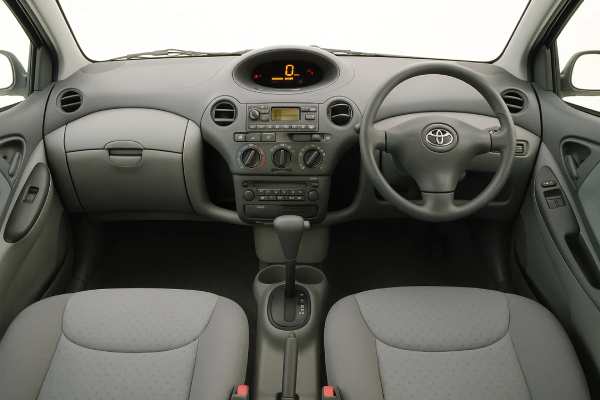

Equipment depends on trim, but even early cars typically include power steering, dual front airbags, height-adjustable steering column, and a clear central digital instrument cluster. Higher grades add ABS with EBD, side airbags, air conditioning, better audio, and alloy wheels. The Yaris was engineered and crash-tested to contemporary European standards, and it was one of the first small cars in its class to focus heavily on occupant safety rather than just low purchase price.
Overall, the NCP10 1.3 is best thought of as a city-biased hatchback that can comfortably stretch to long journeys, offering a durable powertrain, efficient packaging, and straightforward mechanical layout that independent workshops understand very well.
2NZ-FE Specs and Data
Engine and performance
| Item | Value |
|---|---|
| Engine code | 2NZ-FE inline-4, DOHC, 16-valve, VVT-i |
| Displacement | 1.3 L (1,299 cc) |
| Bore × stroke | 75.0 × 73.5 mm |
| Compression ratio | 10.5:1 |
| Induction / fuel | Naturally aspirated, multi-point injection |
| Max power | 85–86 hp (63 kW) @ 6,000 rpm |
| Max torque | 124 Nm (91 lb-ft) @ 4,400 rpm |
| Timing drive | Single roller timing chain (no cambelt) |
| Firing order | 1-3-4-2 |
| Emissions class (EU) | Euro 3 on most 1999–2003 EU models |
Factory performance and economy:
| Metric | Manual | Automatic |
|---|---|---|
| 0–100 km/h (0–62 mph) | 12.1 s | 13.1 s |
| Top speed | ~175 km/h (109 mph) | ~164 km/h (102 mph) |
| Combined fuel use (type approval) | 6.0 L/100 km (47.1 mpg UK / ~39 mpg US) | 6.6 L/100 km (42.8 mpg UK / ~35 mpg US) |
| Fuel tank | 45 L petrol |
Real-world owners usually report 6.0–6.5 L/100 km in mixed use for the manual, slightly higher for the automatic, assuming sensible driving and correct tyre pressures.
Transmission and driveline
| Item | Manual | Automatic |
|---|---|---|
| Gearbox | 5-speed C5x series | 4-speed U3x/U4x series torque-converter |
| Drive type | Front-wheel drive (FWD) | Front-wheel drive (FWD) |
| Final drive | ~4.3:1 (varies by market) | Similar overall gearing |
| Differential | Open | Open |
There are no AWD or 4×4 versions of the XP10 Yaris; all NCP10 models are FWD.
Chassis and dimensions
Data below is for a typical 2000–2003 Yaris 1.3 hatchback; minor variations exist by trim and market.
| Item | Value |
|---|---|
| Suspension (front) | MacPherson strut with anti-roll bar |
| Suspension (rear) | Torsion beam with anti-roll bar |
| Steering | Rack and pinion, hydraulic power assist |
| Brakes front/rear | Ventilated discs / solid discs (some markets rear drums on lower trims) |
| Tyres | 175/65 R14 T (typical OE fitment) |
| Length / width / height | 3,615 mm / 1,660 mm / 1,500 mm |
| Wheelbase | 2,370 mm |
| Front / rear track | 1,440 mm / 1,420 mm |
| Turning circle (kerb-to-kerb) | ≈ 9.8 m |
| Kerb weight | ~975 kg (manual; range 929–990 kg) |
| Gross vehicle weight | ~1,365 kg |
| Payload | ≈ 390 kg |
| Fuel tank | 45 L |
| Luggage volume | 305–950 L (rear bench sliding and folded) |
Fluids and service capacities
Values are typical for 2NZ-FE Yaris NCP10; always confirm against the VIN-specific workshop manual.
| System | Spec | Approx. capacity |
|---|---|---|
| Engine oil | API SJ or higher, 5W-30 (synthetic or semi-synthetic) | ~3.7 L including filter |
| Cooling system | Long-life ethylene glycol coolant, 50:50 mix | ~4.5–5.0 L |
| Manual gearbox oil | API GL-4/GL-5 75W-90 | ≈ 2.0 L |
| Automatic ATF | Toyota Type T-IV or equivalent | ≈ 6–7 L total, 3–4 L drain/refill |
| Brake fluid | DOT 3 or DOT 4 | Fill to reservoir mark |
| A/C refrigerant | R134a | ~450 g typical charge |
Engine oil capacity and interval figures follow Toyota engine-family data; other capacities align with standard XP10 Yaris fluid tables.
Electrical and safety basics
- Alternator output: typically around 70–80 A, adequate for standard accessories.
- 12 V battery: usually 35–45 Ah in a compact JIS case size.
- Spark plugs: long-life iridium with a typical gap around 1.0 mm; replacement interval around 100,000 km where long-life plugs are fitted.
Safety-wise, the NCP10 platform uses a strong passenger cell, energy-absorbing front structure, and a decoupling brake pedal intended to reduce leg injuries in severe frontal impacts.
Yaris NCP10 Grades and Safety
Trim names and equipment vary by region, but for a typical European market (such as the UK) the 1999–2003 Yaris 1.3 line-up covered grades like S, GS, GLS, CDX, and the sportier SR. The 1.3 engine was standard on most higher trims and optional on some base versions.
Trims and options
- Entry trims (e.g., S/GS)
- 1.0 standard, 1.3 optional.
- Steel wheels, cloth interior, central locking, power steering.
- Driver and passenger airbags, basic audio system.
- Mid trims (e.g., GLS)
- 1.3 often standard, with manual or automatic gearbox.
- Air conditioning, split-fold rear seat with sliding bench, better audio, rev counter.
- Height-adjustable driver’s seat on many markets.
- High trims (CDX, various “Luna/Spirit” style grades)
- 1.3 with more equipment: alloy wheels, fog lights, automatic climate control in some markets.
- Leather steering wheel, extra storage bins, different upholstery.
- SR or sporty packages
- Cosmetic upgrades (body kit, spoiler), firmer suspension tune, larger wheels.
- Still the same 1.3 2NZ-FE engine, but with sharper steering response and a tauter ride.
Key mechanical differences between trims are wheel/tyre size, availability of rear disc brakes, and standard vs optional ABS. Higher trims may have slightly higher kerb weights due to extra equipment, but there is no change to the core powertrain.
Safety ratings
The first-generation Yaris scored strongly in independent crash tests for its time. Early Euro NCAP testing of the Yaris hatchback returned four stars for adult occupant protection, plus a then-typical rating for pedestrian protection. That performance helped the Yaris stand out in a segment where many rivals still lagged behind in structural integrity and restraint design.
Safety systems and ADAS
The Yaris NCP10 predates modern advanced driver assistance systems, so there is no autonomous emergency braking, lane keeping, or radar cruise. However, it has a solid passive and basic active safety package:
- Dual front airbags standard on almost all markets; a switchable passenger airbag may be present depending on year.
- Seatbelt pre-tensioners and load limiters for front seats, with height-adjustable belts on many 5-door versions.
- ISOFIX or compatible child-seat anchorage points on later model years.
- Anti-lock brakes with electronic brake-force distribution (ABS + EBD) standard or optional depending on trim and country.
After any accident repairs, it is important that:
- Airbag modules, seatbelt pre-tensioners, and crash sensors are replaced according to Toyota procedures.
- The steering geometry is checked and adjusted to avoid instability at speed.
For a used-car buyer, prioritising a car with ABS, a full airbag complement, and a documented accident and repair history is more important than choosing the very highest cosmetic trim.
Ownership Reliability and Known Issues
The NCP10 Yaris 1.3 has an excellent reputation for longevity. Many cars exceed 200,000–250,000 km with only routine servicing. Still, after two decades, age-related issues and neglected maintenance are more important than anything the factory did or did not do.
Engine and ancillaries
- Oil changes: The 2NZ-FE dislikes extended intervals on poor-quality oil. Sludge can affect VVT-i actuation and lead to noisy cold starts or hesitation. Regular 5W-30 oil changes every 10,000–15,000 km keep the internals clean and the timing chain happy.
- Coil packs and spark plugs: Misfires under load, rough idle, and an illuminated or flashing check-engine light often point to failing coil-on-plug units or tired plugs. Replacing the affected coil (and ideally all plugs) is usually enough.
- Oxygen (lambda) sensors: With age, O2 sensors can slow down, causing richer mixtures, higher fuel consumption, and stored fault codes. Replacement restores closed-loop control and smooth running.
- Cooling system wear: Radiators and water pumps can develop small leaks as the plastic and seals age. Look for pinkish crusty deposits around the pump and radiator end tanks, and monitor coolant level over time.
Timing chain and valvetrain
The 2NZ-FE uses a timing chain instead of a belt, so there is no scheduled replacement interval. True chain wear is rare on well-serviced engines, but watch for:
- Pronounced rattling at cold start that does not quickly fade.
- Timing-related fault codes or noticeable loss of power.
In such cases, a full timing chain kit (chain, guides, tensioner) plus fresh seals is the appropriate fix.
Transmission and driveline
- Manual gearbox: Generally robust. Whining in fifth gear suggests bearing wear; difficulty engaging gears can indicate clutch or linkage issues rather than gearbox failure. Regular oil changes help extend life.
- Clutch: A consumable, especially on learner-driven or heavily urban cars. Signs include slipping under full throttle, judder, and a very high biting point.
- Automatic gearbox: The 4-speed auto is simple and reliable when the fluid is maintained. Common issues are harsh shifts or flare from old ATF or sticking solenoids. Drain-and-fill service often improves behaviour if caught early.
Chassis, suspension, and corrosion
- Front drop links and anti-roll-bar bushes: Frequent sources of front-end clunks and rattles over rough surfaces. Parts are inexpensive and straightforward to replace.
- Rear beam and trailing-arm bushes: Wear causes a loose or “rear-steering” feeling and uneven tyre wear. Replacement restores confidence at speed.
- Rust hotspots: Pay attention to rear sills, inner wheel arches, the boot floor edge, and front subframe mounts. Surface rust is manageable; heavy flaking or perforation in structural areas can be a deal-breaker.
Electrical and interior
Electrics are simple by modern standards. Typical faults include:
- Worn indicator or wiper stalk contacts causing intermittent operation.
- Central locking actuators failing on individual doors.
- Heater blower resistors burning out, leaving only the highest fan speed.
The interior plastics are robust, but seat bolsters can sag on high-mileage cars, and soft-touch coatings on switches may wear or peel.
Recalls and service actions
Over its life the XP10 Yaris family has been subject to recalls, including airbag-related campaigns in some markets. Best practice:
- Run the VIN through the official Toyota recall site or your national safety agency.
- Ask for dealer printouts showing completed recalls and service campaigns.
- Keep records of any later airbag, steering column, or brake-related work.
In summary, most NCP10 Yaris issues are low to medium in severity. The main real risks are structural rust, neglected fluids, and long-overdue brake or suspension work rather than catastrophic engine or transmission failures.
Maintenance Planning and Buying Guide
A sensible maintenance plan for a Yaris NCP10 1.3 combines Toyota’s original schedule with allowances for age. Always follow whichever comes first between distance and time, and shorten intervals if the car sees severe service (short trips, constant city use, or very hot or cold climates).
Practical maintenance schedule
Engine and ignition
- Engine oil and filter: Every 10,000–15,000 km or 12 months. Use a good-quality 5W-30 oil meeting or exceeding the original spec.
- Engine air filter: Inspect every 15,000 km; replace roughly every 30,000 km, or sooner in dusty conditions.
- Cabin (pollen) filter: Replace every 15,000–20,000 km or 1–2 years if fitted.
- Spark plugs (iridium): Replace around 90,000–100,000 km; inspect sooner if there are misfires or poor fuel economy.
- Fuel filter: On versions with a serviceable external filter, consider replacement at 90,000–120,000 km. On in-tank integrated filters, focus on using quality fuel and regular servicing.
Cooling, belts, and hoses
- Coolant: For older cars, a full coolant change every 4–5 years is sensible, regardless of mileage.
- Auxiliary (serpentine) belt: Inspect at every service for cracks or glazing; replace around 90,000–120,000 km or at the first sign of noise.
- Radiator and heater hoses: Inspect annually; replace if swollen, cracked, or excessively soft.
Driveline and brakes
- Manual gearbox oil: Change roughly every 80,000–100,000 km to maintain smooth shifts.
- Automatic ATF: Drain and refill every 60,000–80,000 km with the correct type; avoid aggressive flushing on very old, high-mileage units.
- Brake fluid: Replace every 2 years regardless of mileage.
- Brake pads and discs: Inspect at each service; replace pads before they reach minimum thickness and check discs for grooves, lips, or warping.
- Handbrake cables and mechanisms: Check for free movement and correct adjustment, especially in rust-prone climates.
Suspension, tyres, and alignment
- Tyre rotation: Every 10,000–15,000 km to even out wear.
- Wheel alignment: Check annually or after any impact with a pothole or kerb that affects steering.
- Shocks, springs, and bushes: Inspect yearly; replace leaking dampers, broken springs, or heavily cracked rubber bushes.
Electrical and general
- 12 V battery: Test yearly once it is more than five years old; replace if weak to avoid no-start situations.
- Lighting and wipers: Check regularly; wipers typically last 1–2 years in daily use.
Timing components are chain-driven, so there is no scheduled belt to replace. Still, pay attention to unusual timing noise and address chain issues promptly if they arise.
Fluid specs and torque examples (always verify)
- Engine oil: 5W-30 meeting API SJ or later, capacity around 3.7 L with filter.
- Coolant: Toyota long-life or equivalent ethylene glycol coolant at the correct mix.
- Brake fluid: DOT 3 or DOT 4.
- Wheel nuts: Typically around 100–105 Nm; confirm in the appropriate manual.
Buyer’s guide checklist
When viewing a used NCP10 Yaris 1.3:
- Body and rust
- Inspect sills, wheel arches, rear axle mounting points, front subframe, and the boot floor.
- Avoid cars with extensive structural corrosion, even if the price is tempting.
- Engine health
- Start from cold; the engine should fire promptly and settle to a smooth idle.
- Listen for sustained chain rattle, knocks, or loud tappet noise.
- Check for blue smoke on start-up or acceleration, which may indicate oil burning.
- Fluids and service history
- Look for invoices or a stamped service book showing regular oil, coolant, and brake fluid changes.
- Examine oil and coolant for contamination (mayonnaise, sludge, or rust flakes).
- Transmission and driveline
- Manual: gears should select cleanly with no crunch; clutch should not slip or judder.
- Automatic: shifts should be smooth, with no strong flare between gears.
- Brakes and suspension
- On a test drive, check for pulling, steering vibration under braking, and knocks over bumps.
- Inspect tyre wear patterns for signs of poor alignment or worn suspension.
- Interior and electrics
- Test all windows, locks, mirrors, instrument cluster functions, and the heater fan at all speeds.
- Confirm that all warning lights come on with ignition and go out after start, rather than being removed or disabled.
Best years and trims
Later pre-facelift cars (around 2002–2003) with mid or high trims and ABS are usually the sweet spot. Look for evidence of caring owners: matching tyres, clean interior, and a tidy engine bay are often more meaningful than the odometer alone.
On-Road Performance and Comfort
The 2NZ-FE engine is not fast by modern standards, but in the light Yaris shell it feels willing. Below about 2,000 rpm it is modest, yet once spinning between 3,000 and 6,000 rpm it pulls cleanly with a smooth, slightly coarse four-cylinder note. The intake VVT-i widens the torque band, so the car copes better with hills and motorway slip roads than the 1.0-litre variant.
With the manual gearbox, 0–100 km/h in roughly 12 seconds and a top speed around 175 km/h are realistic. You will not win drag races, but in real-world traffic the Yaris keeps up just fine, especially in urban and suburban environments where agility and visibility count more than outright speed.
Ride quality is generally comfortable. The tall body and relatively soft springs give a slightly bouncy feel over big undulations, but the suspension copes well with broken city surfaces and speed bumps, especially on original-size tyres. Body roll is noticeable when you push on, but grip is predictable and the car tends to understeer gently rather than surprise the driver.
Steering effort is light at low speeds, which makes parking and tight manoeuvres easy, helped by a very tight turning circle. At motorway speeds, the steering is stable enough but not especially feelsome. Crosswinds can be felt on exposed roads; good tyres and healthy rear suspension bushes help keep it tracking straight.
Cabin noise is acceptable for a small, early-2000s hatchback. Expect engine noise to increase noticeably above 4,000 rpm and some tyre roar on coarse asphalt. High-quality tyres, correct pressures, and intact undertrays and seals all contribute to quieter running.
Real-world fuel economy
For a healthy Yaris NCP10 1.3 with a manual gearbox:
- City use: typically around 6.5–7.0 L/100 km if driven smoothly.
- Steady 100–120 km/h: usually 5.8–6.3 L/100 km, depending on load, gradient, and weather.
- Mixed driving: close to the official combined figure of around 6.0 L/100 km.
Autos use a bit more, particularly in stop-start traffic. Roof racks, heavy loads, underinflated tyres, and aggressive driving can quickly push consumption higher; careful driving and regular maintenance help keep it in check.
Overall, the Yaris NCP10 1.3 feels honest and capable rather than exciting: it is easy to drive, easy to park, and comfortable enough for everyday use, which is exactly what many owners want.
How the NCP10 Compares
When new, the Yaris 1.3 competed with cars such as the VW Polo 1.4, Ford Fiesta 1.25/1.4, Opel/Vauxhall Corsa 1.2/1.4, Peugeot 206 1.1/1.4, and later the Honda Jazz/Fit. Today, all of these are cheap to buy, so reliability, rust resistance, and running costs matter more than showroom appeal.
Where the Yaris shines
- Reliability and durability: The 2NZ-FE engine and simple transmissions often outlast equivalent units in some French, Italian, and even German rivals, given equal care. Major engine or gearbox failures are relatively uncommon.
- Interior packaging: The tall, upright body, sliding rear bench, and deep boot make the Yaris feel almost like a mini-MPV inside, whereas many rivals sacrifice practicality for style.
- Running costs: Routine parts are widely available, many shared with other small Toyotas, and labour times are modest. Insurance groupings are generally favourable for the 1.3.
- Fuel economy: Real-world economy is competitive with the best 1.2–1.4 petrol engines of the era, and often better when the car is well maintained.
Where rivals may be stronger
- Refinement: A Polo or later Jazz/Fit is usually quieter and calmer at motorway speeds thanks to more sound insulation and, in some cases, longer gearing.
- Dynamic feel: Ford’s Fiesta is widely praised for steering feel and chassis balance; enthusiastic drivers may prefer its sharper response to the Yaris’s safe neutrality.
- Safety versus newer models: Compared to 2010s superminis, the NCP10 lacks multiple airbags, ESP/ESC as standard, and advanced active safety features. If you want modern crash protection, a newer generation of Yaris or a different car may be a better choice.
Best fit for the NCP10
The Yaris NCP10 1.3 suits:
- Owners who want a dependable, low-cost “appliance” car that just works.
- City and suburban drivers who value light controls, easy parking, and good visibility.
- New drivers or students, provided the car is structurally sound and equipped with ABS and the best available airbag package.
- Enthusiasts who appreciate simple engineering and want a low-fuss base for modest suspension, wheel, or interior upgrades rather than heavy engine tuning.
Against its contemporaries, a well-kept NCP10 Yaris 1.3 still makes a strong case as a sensible, economical supermini. As always, condition and maintenance history matter far more than badge or trim level.
References
- Toyota Yaris Family Grows With New 1.3-Litre Models 1999 (Technical Specification)
- Yaris (1st generation, 1999–2006) 2019 (Model Archive)
- 2000 Toyota Yaris 1.3 Specifications & Performance 2023 (Technical Data)
- Toyota NZ series engines 2010 (Engine Technical Overview)
- 1TA180 – TOYOTA Yaris 1.3 2025 (Swiss Type Certificate)
Disclaimer
This article is intended for informational purposes only and does not replace professional diagnosis, repair advice, or official service literature. Specifications, torque values, fluid types, and maintenance intervals can vary by VIN, market, model year, and equipment level. Always confirm critical data against the official owner’s manual, workshop manual, or manufacturer technical information for your specific vehicle, and consult a qualified technician before carrying out any repair, modification, or towing operation.
If you found this guide helpful, you are welcome to share it with other owners or enthusiasts on platforms such as Facebook or X/Twitter to support xcar’s work and help more people keep their cars in good condition.
